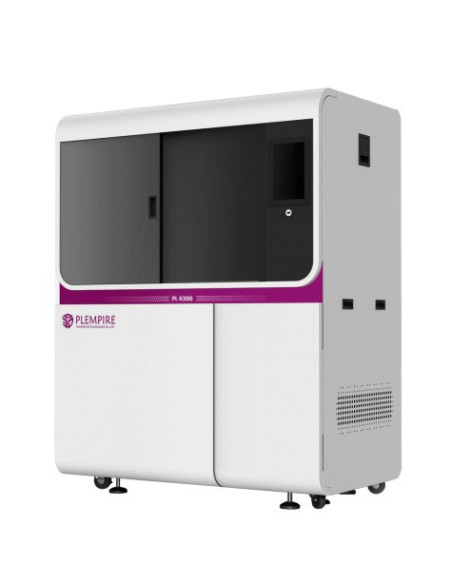

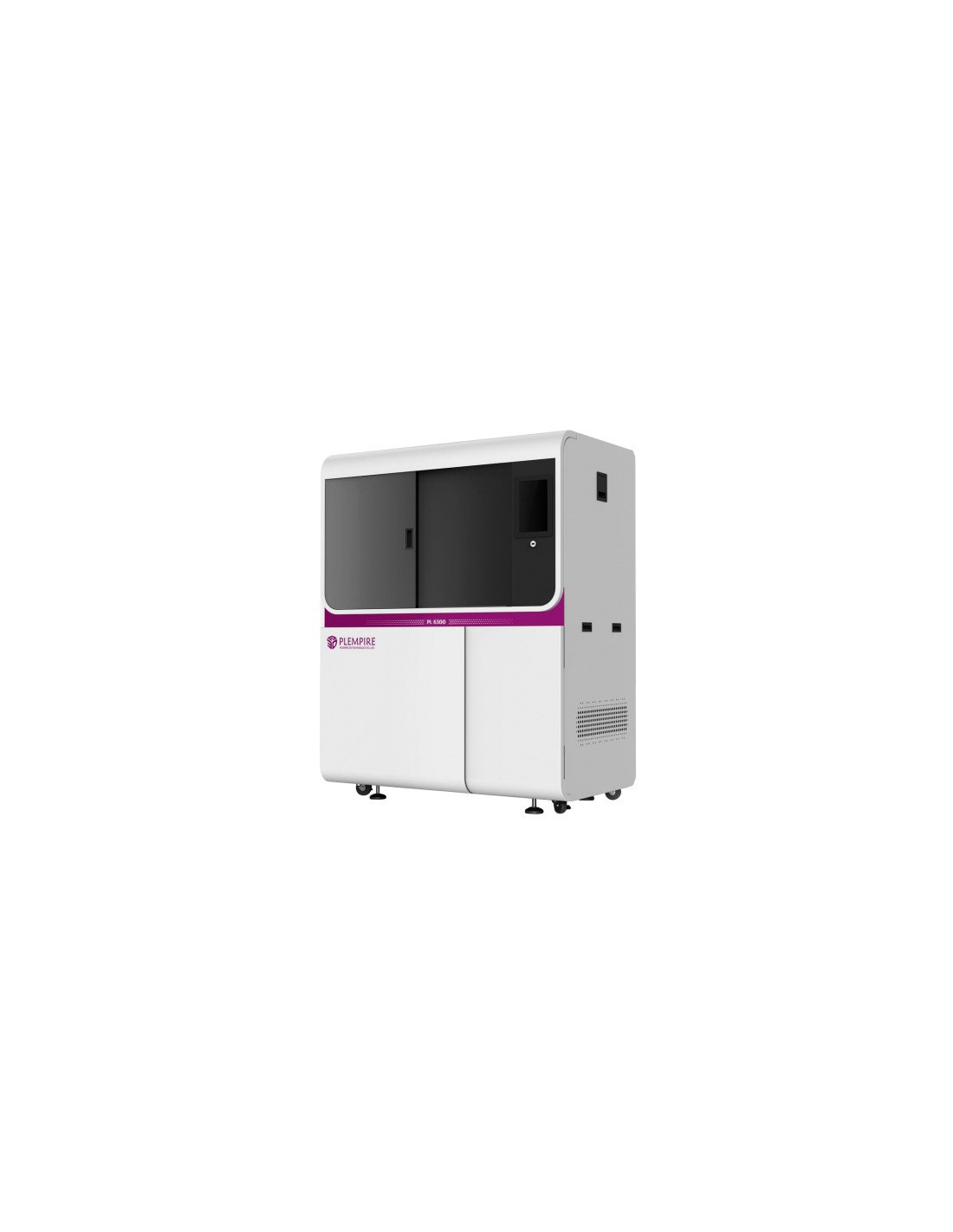

Plempire PL6300 MJP 3D Printer

Applications

The Plempire PL6300, independently developed by PLEMPIRE 3D TECHNOLOGY CO., LTD, introduces a new era in wax pattern manufacturing. Powered by an advanced three-printhead collaborative printing technology, this breakthrough solution is engineered for ultra-high-performance wax model fabrication. It is the definitive choice for large-scale industrial jewelry production and casting houses that require a dramatic boost in batch printing speed without compromising on microscopic detail.

Advantages

The core value of the PL6300 lies in its elevated efficiency—where speed and precision are perfectly combined. By leveraging the parallel operation of three printheads, it significantly shortens the time from digital design to finished casting model. The output features exceptionally smooth surfaces, outstanding detail reproduction, and consistently reliable dimensional accuracy of ± 0.04 mm. This precision reduces manual finishing labor and minimizes the loss of costly precious metals during the polishing phase.

Workshop Suitability

With a net weight of 486 kg and a heavy-duty industrial chassis, the PL6300 provides the rock-solid stability required for continuous 24/7 production. The increased build volume of 290 x 207 x 138 mm and high-capacity material system (supporting 3.0 kg build and 3.6 kg support bottles) allow for extended autonomous operation. The dedicated PL3DPrint slicing software ensures seamless processing of STL, SLC, and OBJ files, adapting effortlessly to both standardized mass production and flexible custom orders.

Technological Recommendation

The collaborative three-head architecture allows for high-throughput of complex geometries. Utilizing the MultiJet Printing (MJP) technology with 15 µm layers ensures superior surface fidelity, which is critical for achieving high-density metal casts. The 100% wax material guarantees zero ash residue and a clean burnout, protecting the integrity of the investment mold and the final jewelry piece.

Maintenance / Service

This industrial-scale system requires a stable 220-240V AC power supply with 23A protection. 3DFantom provides authorized installation, expert technical training, and routine maintenance of the collaborative printhead array to ensure maximum productivity, market competitiveness, and a long industrial lifespan.

PARAMETERS

• Technology: MultiJet Printing (MJP) – Three-Printhead Collaborative Architecture

• Build Volume (xyz): 290 x 207 x 138 mm

• Resolution (xyz): 2900 x 2900 x 1700 DPI (15 μm layer thickness)

• Accuracy: ± 0.04 mm per 20 mm of part dimension

• Slicing Software: PL3DPrint (supports STL, SLC, OBJ)

• Material Capacity: Max 2 Build (3.0 kg) & 2 Support (3.6 kg) bottles

• Machine Size: 1310 x 770 x 1670 mm

• Weight: 486 kg (Net) / 636 kg (Gross)

• Electrical: 220-240V AC, 50/60Hz, 23A (C14 Socket)
