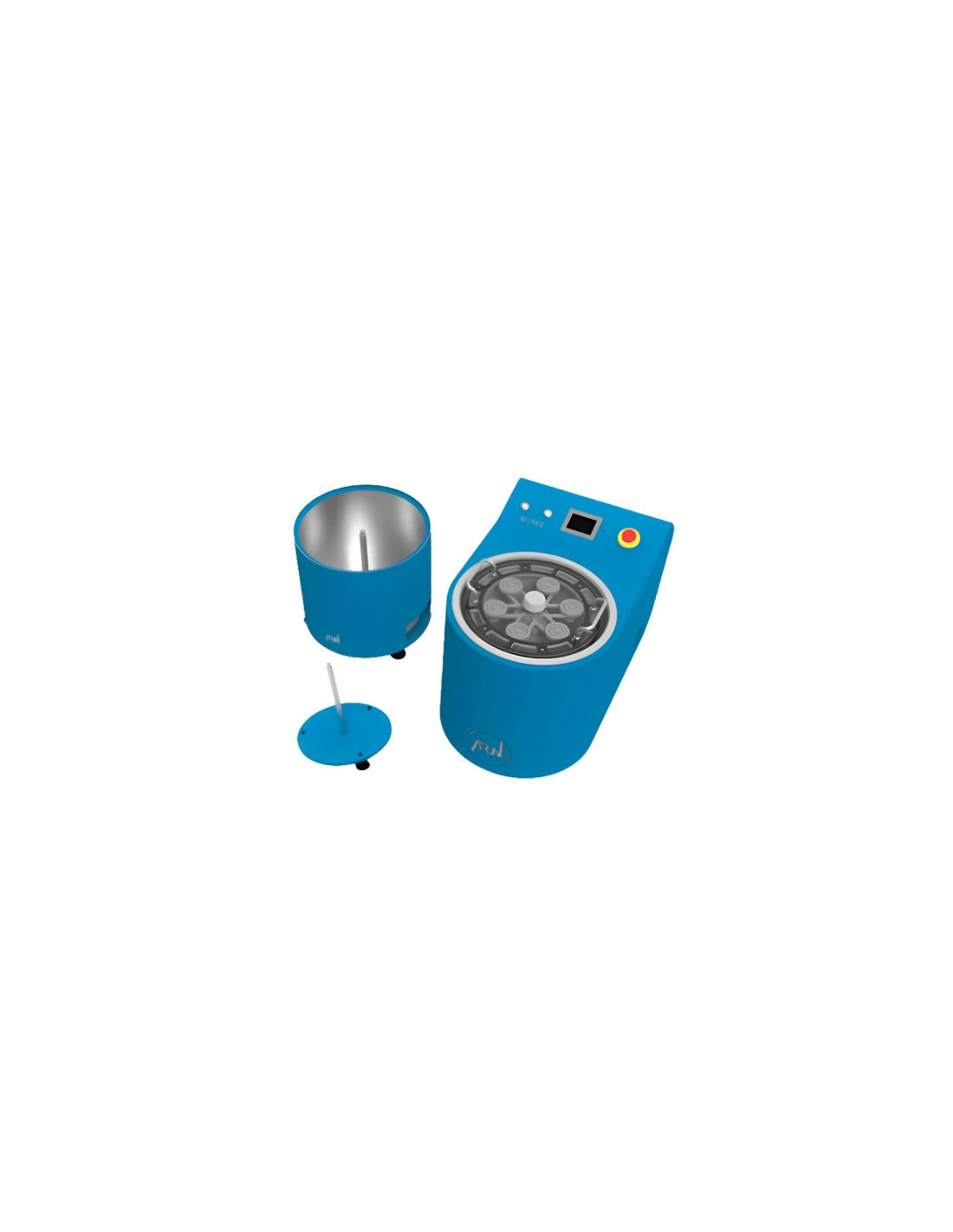

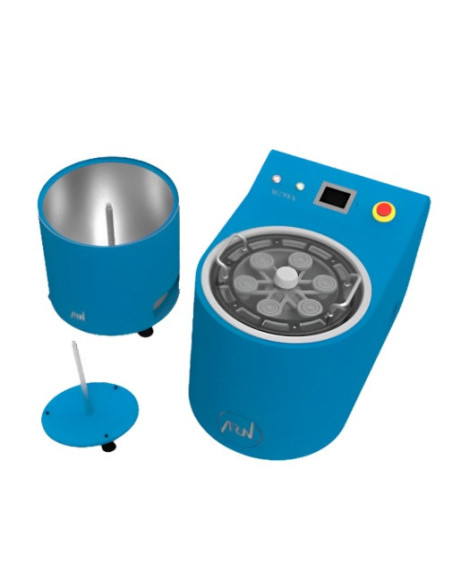

ARN Elektrochem ALPHA Electrolytic Polisher

Application

The ARN Elektrochem ALPHA is a high-performance electrolytic polishing system engineered for the industrial finishing of gold and silver wearable items. It is specifically optimized for high-volume production of rings, earrings, and bracelet clasps. With a specialized capacity for chains (up to 7 meters) and micro-filigree casting (1 mm to 3 mm width), it provides a perfect finish for the most delicate and complex geometries that are otherwise difficult to reach with traditional mechanical polishing.

Advantages

The ALPHA system significantly increases productivity by delivering a consistent mirror finish across large batches simultaneously. The automated electrolytic process removes a microscopic layer of metal without mechanical stress, preserving the sharp edges of intricate designs. A standout feature is the integrated precious metal reclamation system, which allows for efficient recovery of metal removed during the process, minimizing workshop loss.

Workshop Suitability

Despite its industrial-grade capacity, the ALPHA maintains a compact footprint (42 x 32 x 42 cm), making it suitable for both medium-sized studios and large manufacturing plants. Its heavy-duty 50 kg construction ensures stability during continuous operation. The digital interface provides the operator with precise control over time and power settings, ensuring repeatable, high-quality results for every cycle.

Technological Recommendation

For optimal results on filigree parts (1–3 mm), ensure thorough ultrasonic degreasing prior to the cycle. When processing chains, utilize the full 7-meter capacity by distributing the weight evenly across the hangers to ensure a uniform current density and consistent shine throughout the entire length of the chain.

Maintenance / Service

Regular monitoring of the electrolyte levels and electrode cleanliness is required for consistent conductivity. The unit features a built-in Emergency Stop (E-Stop) for enhanced operator safety. 3DFantom provides full technical support, including the supply of specialized electrolytes and replacement parts to maintain peak industrial performance.

PARAMETERS

• Hanging Capacity: 96 items per cycle

• Small Parts Capacity: 30 pcs (bracelet clasps/clamps)

• Chain Capacity: Up to 7 meters

• Precision Range: 1 mm to 3 mm (fine filigree)

• Dimensions: 42 x 32 x 42 cm

• Weight: 50 kg

• Power Supply: 220 V

• Power Consumption: 220 W

• Safety: Integrated Emergency Stop (E-Stop)

• Interface: Digital control panel
