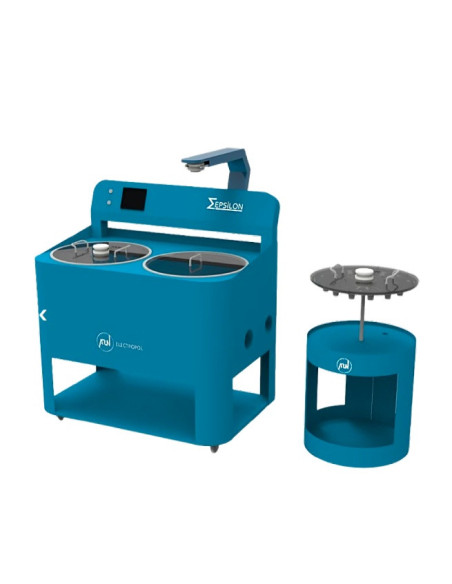

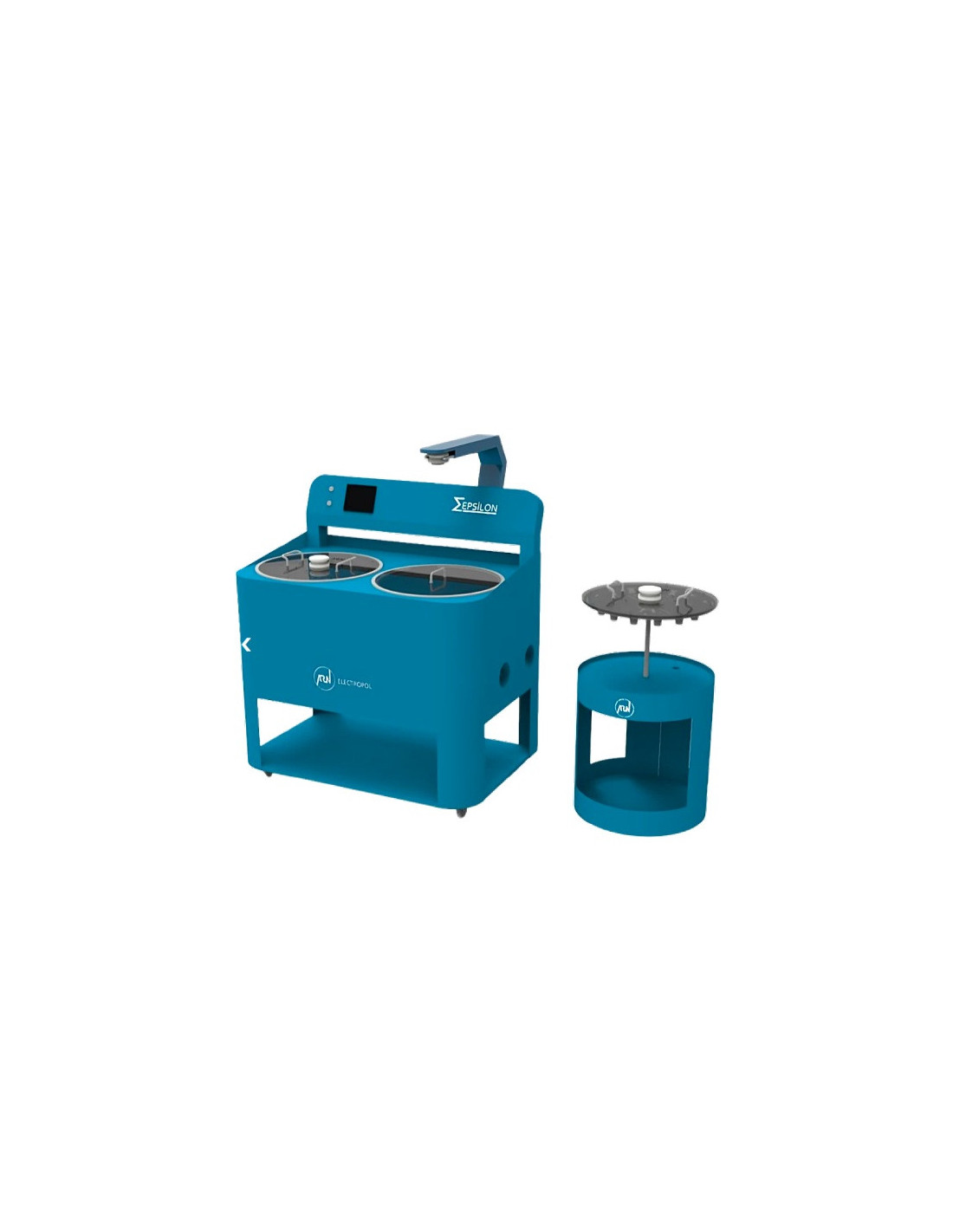

ARN Elektrochem EPSILON Electrolytic Polisher

Application

The ARN Elektrochem EPSILON is the flagship solution for industrial jewelry manufacturers requiring extreme throughput. Engineered for large-scale production, it is suitable for all types of casting and fusion products that can be suspended. It is specifically optimized for mass ring polishing, with the ability to process up to 245 rings simultaneously (with an average weight of up to 8g per piece), making it the most efficient tool for high-volume jewelry factories.

Advantages

The EPSILON model stands out for its industrial performance and speed. Powered by a 3-phase system (380V), it delivers a stable 380W output, ensuring consistent electrolytic action even at maximum capacity. The unit features an integrated stainless steel washing tank for seamless post-processing. Despite its substantial 200 kg weight, the machine is highly portable thanks to a heavy-duty wheel system equipped with specialized brakes for secure positioning.

Workshop Suitability

With dimensions of 145 x 80 x 110 cm, this machine is designed for industrial halls and professional production lines. Its robust steel construction is built for continuous, multi-shift operation. The mobile workstation allows for flexible floor planning, enabling technologists to reorganize production layouts as needed without the need for heavy lifting equipment.

Technological Recommendation

To achieve a perfect mirror finish across all 245 items, it is critical to adhere to the 8g per item weight limit to prevent local current overloads. We recommend a thorough ultrasonic cleaning in the integrated stainless steel tank before the polishing cycle to remove any investment residue or oils, which significantly extends the life of the electrolyte bath.

Maintenance / Service

Maintenance is streamlined by the machine's accessibility. Regular tasks include cleaning the suspension system contacts and monitoring the filtration within the stainless steel tank. 3DFantom provides comprehensive technical support, including installation, staff training, and the supply of industrial-grade ARN electrolytes tailored for this high-capacity system.

PARAMETERS

• Hanging Capacity: 245 rings (max. 8g per piece)

• Application: Castings, Fusion products, Rings, Earrings

• Power Supply: 380V (3-Phase)

• Power Consumption: 380W

• Wash Tank: Integrated Stainless Steel

• Dimensions: 145 x 80 x 110 cm

• Weight: 200 kg

• Portability: Wheel system with specialized brakes

• Build: Heavy-duty industrial grade
