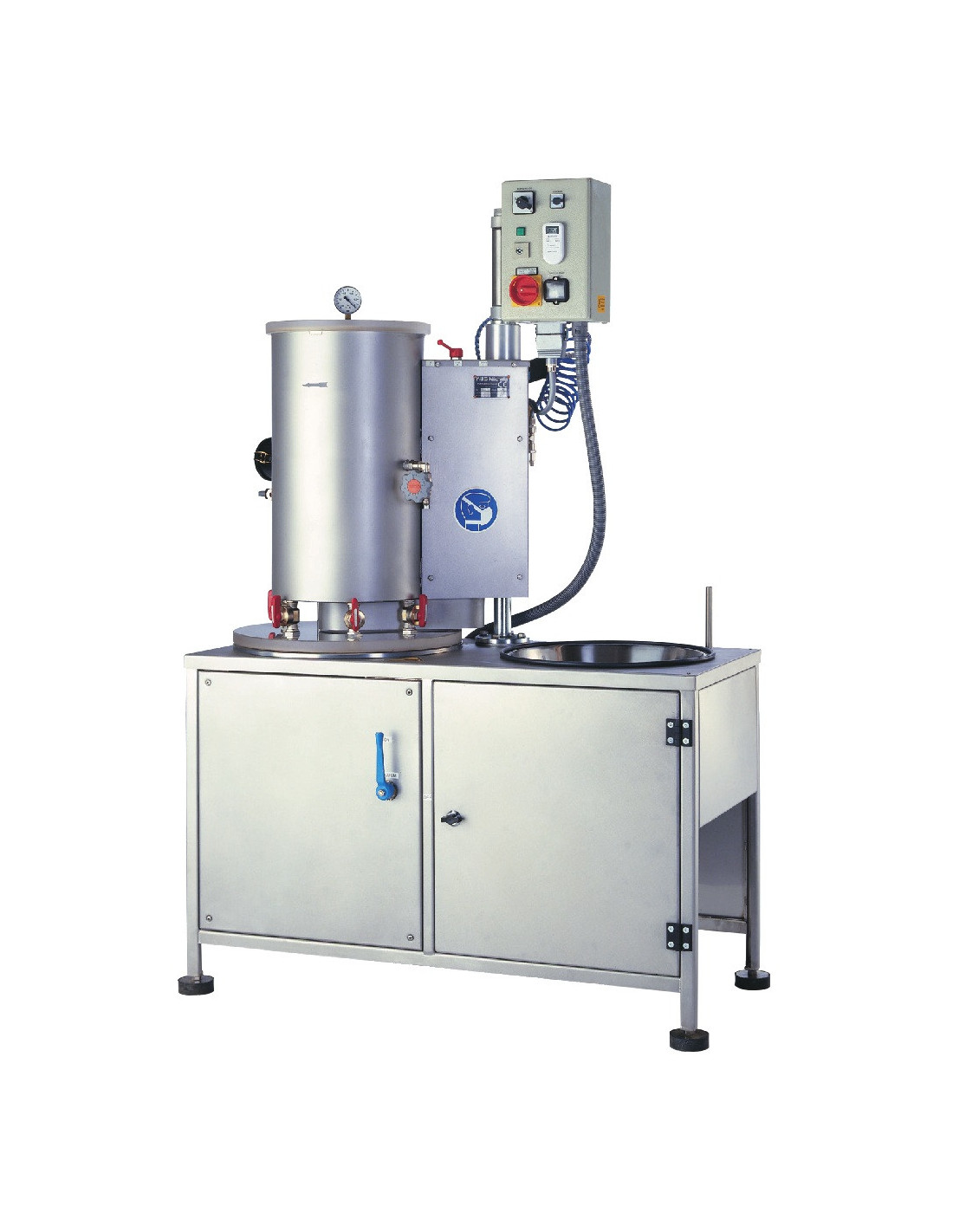

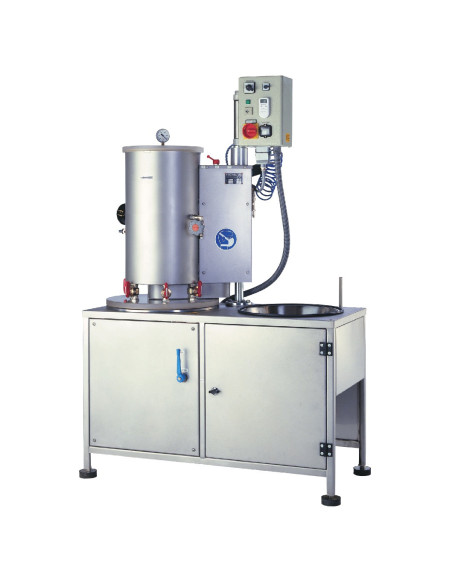

Galloni EB10/16 Vacuum Investment Mixer

Application

The Galloni EB10/16 is a heavy-duty industrial vacuum investment mixer specifically designed for large-scale jewelry production and casting centers. Capable of processing up to 16kg of investment compound in a single cycle, it allows for the simultaneous filling of up to 6 large flasks (up to 270mm height). This machine is the benchmark for high-volume operations where maintaining flawless surface quality and industrial-grade efficiency is the primary objective.

Advantages

The core technology of the EB10/16 is its integrated sieve insert. This system ensures that the investment powder never touches the water until a vacuum is established. The powder is introduced gradually under vacuum, requiring less water to achieve optimal viscosity. This resulting "better quality of plaster" eliminates air inclusions on the surface of the models, ensuring unmatched contour sharpness and high-density molds. It provides a standard of quality that atmospheric mixers simply cannot replicate.

Workshop Suitability

Designed for continuous industrial use, the EB10/16 features a maintenance-free three-phase motor. A two-speed gearbox allows the operator to switch between high-speed mixing and controlled filling of the flasks. Constructed from stainless steel and high-grade aluminum, the machine is highly resistant to the corrosive effects of gypsum and water. The filling taps are made from a specialized alloy to ensure long-term reliability without wear.

Technological Recommendation

For high-volume casting trees, especially those made from 3D-printed resin, the mechanical strength of the mold is critical. The EB10/16's vacuum-processed mixture provides the necessary density to withstand thermal expansion. To ensure peak performance, the integrated filter system protects the vacuum pump from fine investment dust, significantly extending its operational life.

Maintenance / Service

The EB10/16 is built for minimal maintenance: the drive motor and stirring element are integrated to avoid mechanical malfunctions during the loading process. All parts are designed for easy cleaning and high durability. 3DFantom provides professional installation, authorized technical support, and a steady supply of original gaskets and filter sets for heavy-duty operators.

PARAMETERS

• Investment Capacity: 16 kg

• Flask Capacity: Max. 6 flasks simultaneously

• Max. Flask Dimensions: ø 140 mm / Height 270 mm

• Motor Power: 1.7 kW (Maintenance-free three-phase)

• Power Supply: 400 V, 50 Hz

• Speed Control: 2-speed gearbox (Mixing / Filling)

• Material Construction: Stainless Steel and Aluminum

• Filtration: High-efficiency vacuum pump protection system
