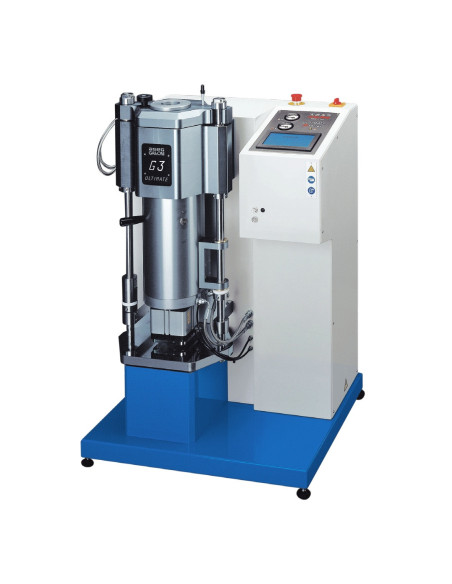

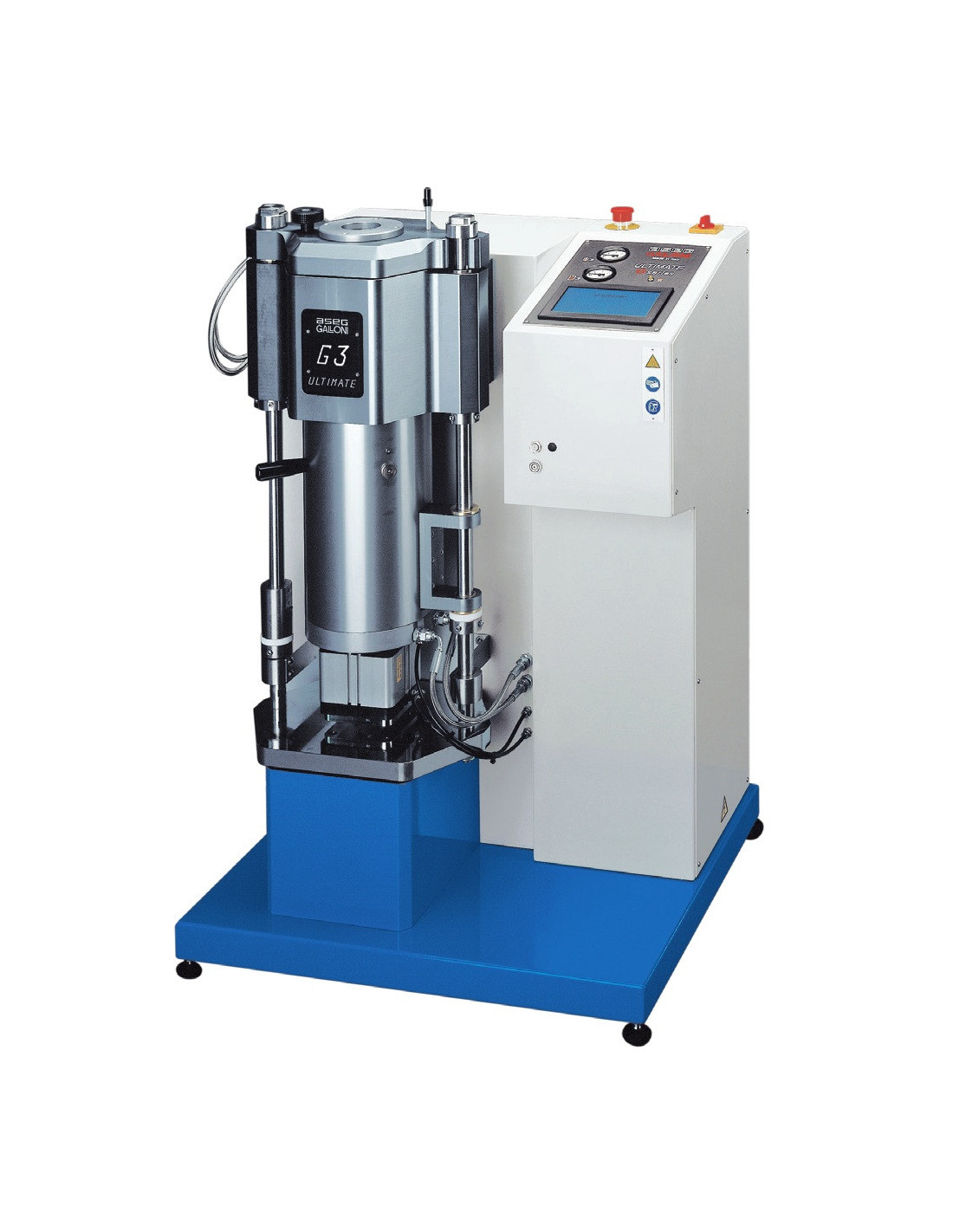

Galloni G3 Ultimate Vacuum Casting Machine

Application

The Galloni G3 Ultimate is the most advanced induction-heated vacuum "over-pressure" casting machine designed for high-volume jewelry production and industrial casting. Unlike conventional machines with separate chambers, the G3 Ultimate utilizes a common chamber design where the crucible and flask are almost in direct contact. This proximity eliminates splashing and gas absorption, making it the premier choice for large-scale production of complex 3D-printed resin models and heavy precious metal castings.

Advantages

Equipped with a powerful 10kW low-frequency generator, the machine ensures rapid melting and active electromagnetic stirring of the melt. This results in perfect alloy homogeneity before the automated pouring sequence. While competitors' systems struggle with pressure drag due to divided chambers, the G3 Ultimate applies a full 3-bar inert gas over-pressure directly onto the molten metal. This force, combined with a vacuum pull, guarantees a defect-free molecular structure and absolute precision in filling even the finest filigree details.

Workshop Suitability

Designed for efficiency, the G3 Ultimate features an intuitive 5.7” TFT color touch-screen that guides the operator through a step-by-step logic. The "one-button" operation philosophy reduces human error and increases productivity, with a complete casting cycle taking only 3–4 minutes. The machine handles flangeless flasks up to 300 mm in height, providing high-output capability for large jewelry trees.

Technological Recommendation

The G3 Ultimate's ability to maintain a temperature spread of no more than ±4°C from the set point is critical for consistent quality. We recommend this system for high-end manufacturing where finishing costs must be minimized. The resulting high-density casting requires significantly less polishing and repair work, while the long-lasting crucible and gasket-free SBS system drastically reduce ongoing overheads.

Maintenance / Service

Built for industrial longevity, the G3 Ultimate features mechanical vacuum connections and a robust 222 kg frame. The crucible is designed to last for hundreds of cycles under proper operation. The system requires an external 40 m³/h vacuum pump and a reliable water-cooling circuit. 3DFantom provides full technical support, on-site calibration, and a steady supply of high-capacity graphite crucibles.

PARAMETERS

• Max. Crucible Capacity: 2200 g Au (18 kt) / 2000 g Ag (925)

• Max. Flask Size: ø 150 mm x 300 mm (Flangeless)

• Induction Power: 10 kW (Low frequency)

• Pressure System: Vacuum + Inert gas over-pressure (up to 3 bar)

• Control Interface: 5.7” TFT Color Touch-Screen

• Cycle Time: 3 – 4 minutes

• Electrical: Three-phase 230-400-415 V – 50/60 Hz

• Weight: 222 kg

• Dimensions: 750 x 650 x 1200 mm (base)
