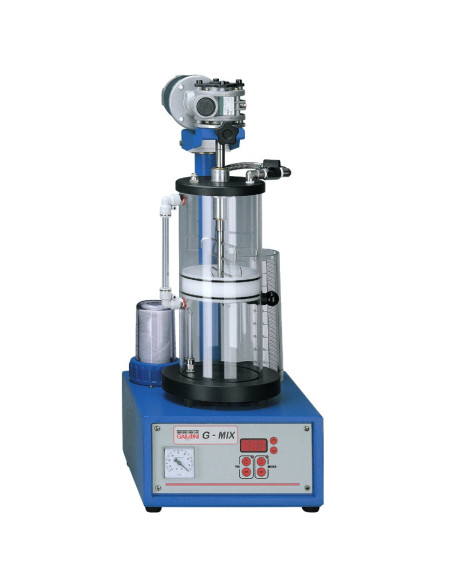

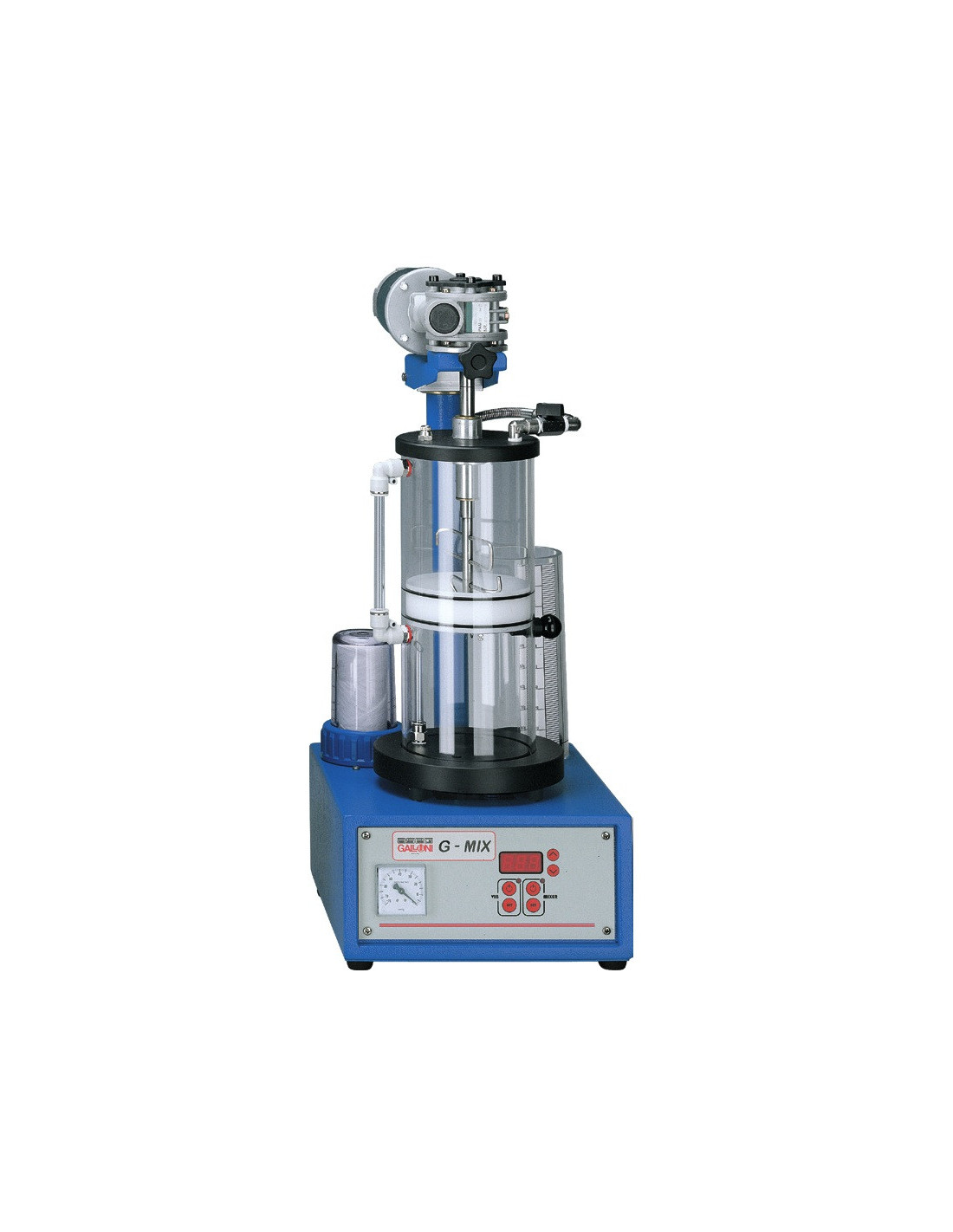

Galloni GAL-MIX Vacuum Mixer (Triple)

Application

The Galloni GAL-MIX (Triple) is an advanced vacuum investment mixer designed for jewelry workshops and laboratories that require high precision and increased productivity. Unlike standard single-flask models, the Triple version features an expanded vacuum chamber with a rotary turntable (carousel), allowing the operator to fill up to three flasks simultaneously within a single vacuum cycle. It is optimized for both gold (3 kg capacity) and platinum (2 kg) investment powders, ensuring gas-free slurries for flawless casting.

Advantages

The primary benefit of the GAL-MIX Triple is the elimination of material waste and downtime. By filling three flasks in one go, you maximize the "open time" of the investment without the need to re-evacuate the chamber for each piece.

• Electronic Control: Precision settings for mixing time and speed are managed by a high-torque motor, ensuring total gas removal and a homogenous mix.

• Rotary System: The manual positioning of flasks under the filling tap is done easily while maintaining a full vacuum.

• Safe Environment: The enclosed system drastically reduces airborne investment powder, protecting the operator and keeping the workshop clean.

Workshop Suitability

This model is perfect for modern studios that handle multiple casting trees daily but have limited bench space. The 230V single-phase power requirement makes it easy to integrate into any workshop. An integrated vibration unit with adjustable intensity ensures that the investment slurry perfectly coats even the most delicate resin or wax details without air entrapment.

Technological Recommendation

When filling three flasks at once, we recommend allowing a slightly longer vacuum time before pouring to ensure the entire 3 kg batch is thoroughly degassed. Utilizing the rotary turntable allows you to move smoothly from one flask to the next, taking full advantage of the investment’s chemical setting window for a superior mold density.

Maintenance / Service

The GAL-MIX is built for durability with minimal maintenance requirements. An integrated filter system protects the vacuum pump from dust and debris. 3DFantom provides full technical support, including replacement gaskets, mixing blades, and expert advice on optimizing your investment-to-water ratios.

PARAMETERS

• Investment Capacity: 3 kg (Gold) / 2 kg (Platinum)

• Flask Capacity: 3 flasks per cycle (rotary turntable)

• Max. Flask Dimensions: ø 100 mm x 120 mm (h)

• Power Supply: Single-phase 230 V, 50/60 Hz

• Motor Type: High-torque with electronic speed regulation

• Features: Integrated vacuum chamber, adjustable vibration, digital timer

• Equipment: Graduated water tank for precise mixing ratios
