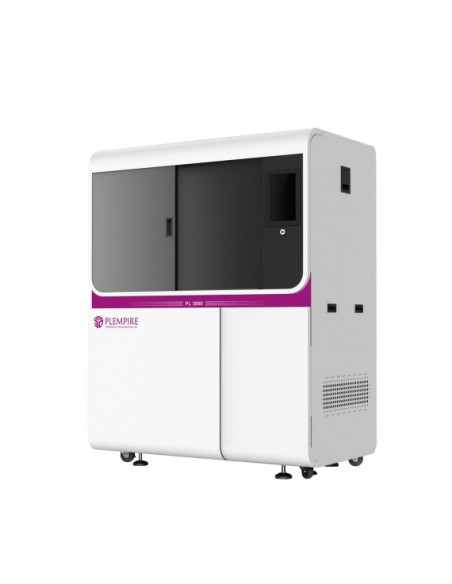

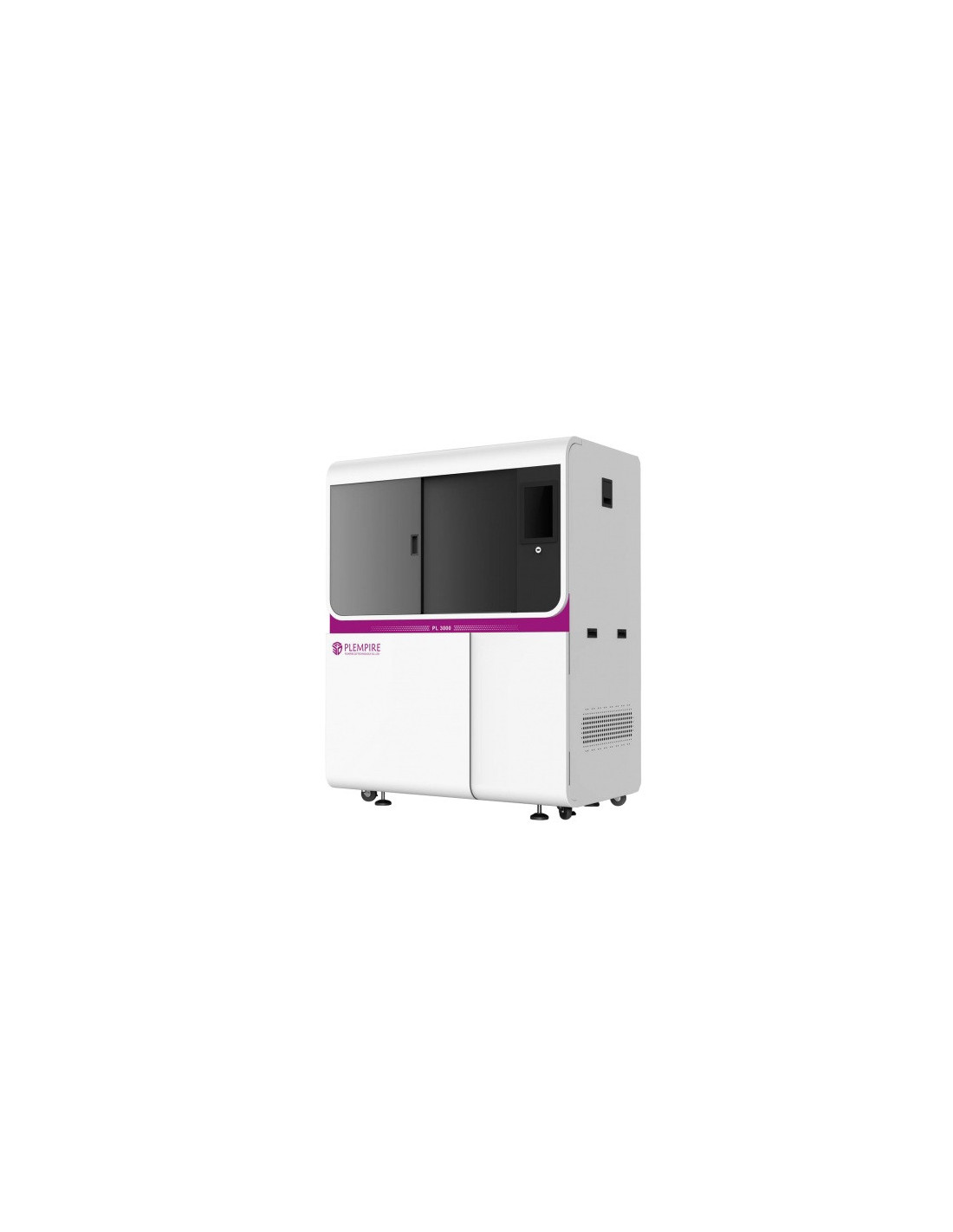

Plempire PL3000 MJP 3D Printer

Applications

The Plempire PL3000 is a new generation of jewelry wax 3D printers independently developed by PLEMPIRE 3D for industrial mass production. Utilizing an upgraded MultiJet Printing (MJP) technology with a sophisticated 3-printhead system, it is specifically designed to meet the demands of large-scale jewelry manufacturing. It enables rapid batch printing and significantly shortens the product launch cycle for high-end jewelry houses and casting centers.

Advantages

The primary breakthrough of the PL3000 is a 280% increase in production volume compared to previous generations. It offers adjustable layer thicknesses of 8 μm, 16 μm, or 32 μm, allowing manufacturers to choose between ultra-high resolution (up to 3200 DPI) and maximum speed. This precision results in razor-sharp edges, crisp details, and superior surface quality, which drastically reduces manual finishing labor and the loss of costly precious metals during polishing.

Workshop Suitability

With a net weight of 480 kg, the PL3000 is a heavy-duty industrial machine built for continuous operation and maximum stability. It features a high-capacity material system accommodating up to 4 large bottles (3 kg build / 3.6 kg support), ensuring long-term autonomy. Its high accuracy of ± 0.08 mm per 20 mm ensures perfect consistency across the entire build platform, which is essential for mass customization and stone-in-place casting.

Technological Recommendation

For ultra-fine filigree or high-detail micro-pavé settings, the 8 μm (3200 DPI) mode is recommended to achieve the highest possible surface fidelity. The 100% wax models melt away completely during the casting process, ensuring zero ash residue and high production efficiency. The printer supports standard STL, SLC, and OBJ file formats, integrating seamlessly into professional digital workflows.

Maintenance / Service

This high-performance 3-head system requires a controlled environment and a stable 220-240V AC power supply (C14 socket). 3DFantom provides authorized installation, expert technical training, and a consistent supply of industrial-scale material packages to keep your production line running at peak efficiency.

PARAMETERS

• Technology: MultiJet Printing (MJP) with 3 Printheads

• Build Volume (xyz): 294 x 212 x 150 mm

• Resolution (xyz): Up to 3200 DPI (8 μm / 16 μm / 32 μm layers)

• Accuracy: ± 0.08 mm per 20 mm of part dimension

• Build Speed (Z): 7.6 mm / hr

• Material Capacity: Max 2 Build (3kg) & 2 Support (3.6kg) bottles

• File Formats: STL, SLC, OBJ

• Machine Size: 1310 x 770 x 1670 mm

• Weight: 480 kg (Net) / 630 kg (Gross)

• Electrical: 220-240V AC, 50/60Hz, 15A (C14 Socket)
