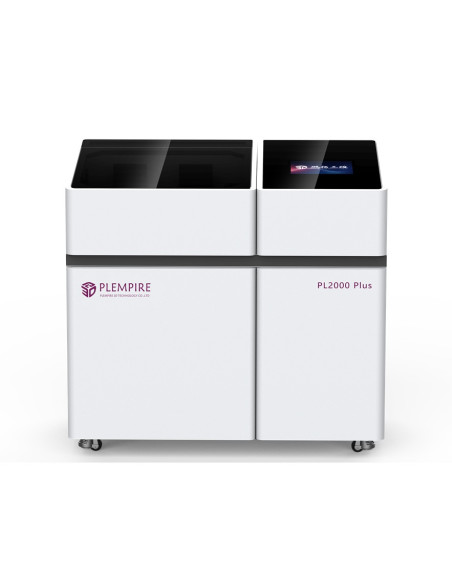

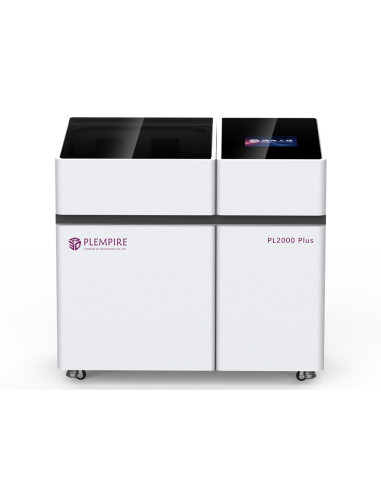

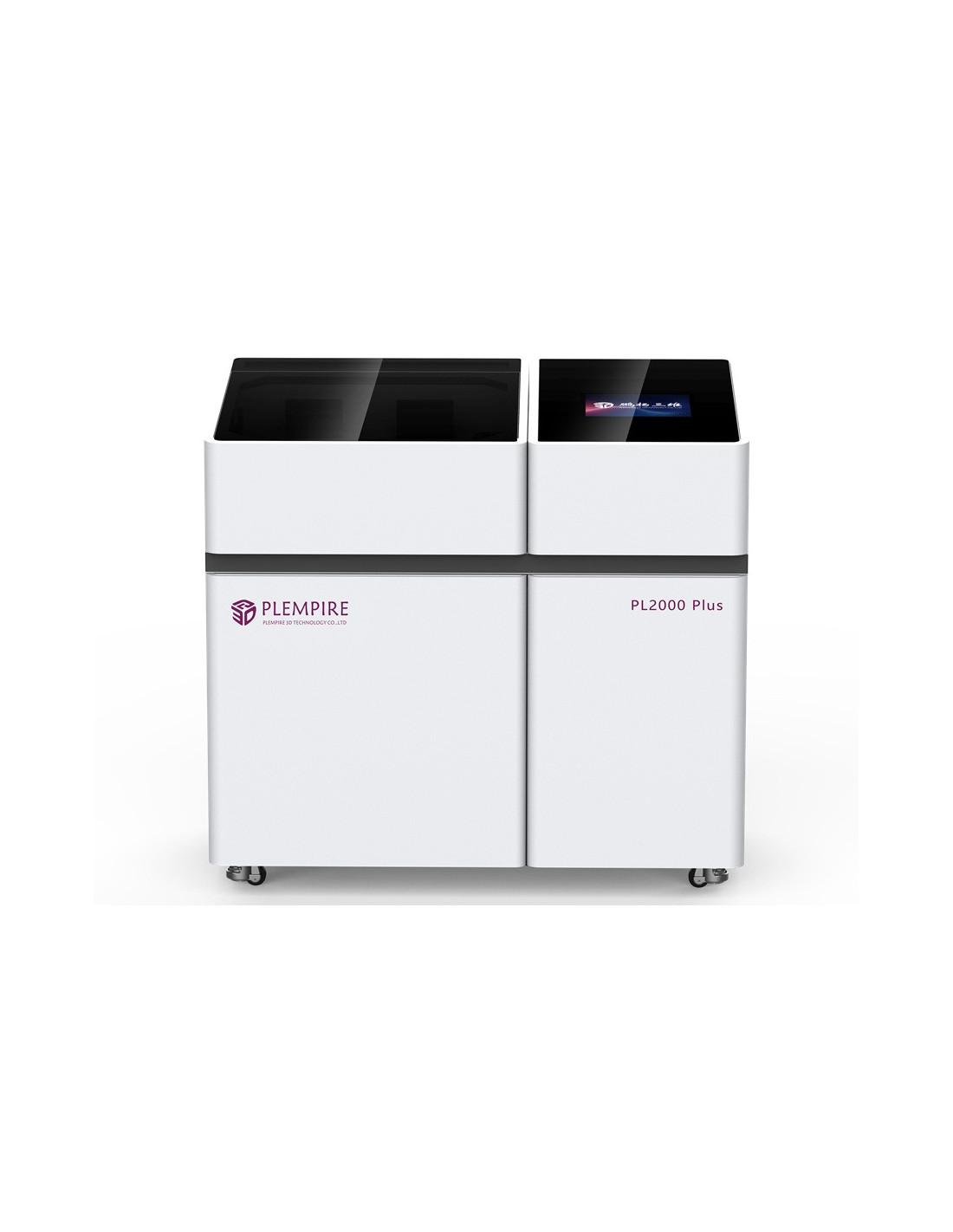

Plempire PL2000 Plus MJP 3D Printer

Applications

The Plempire PL2000 Plus is an intelligent, digital precision 3D printer utilizing advanced MultiJet Printing (MJP) technology. Specifically engineered for the jewelry industry, it focuses on high-volume manufacturing and mass customization. The system transforms digital CAD designs into ultra-fine wax patterns with a layer thickness of just 16 µm, making it the primary choice for large-scale jewelry factories and casting service centers.

Advantages

This model is built on three core pillars: High Precision, High Efficiency, and High Cost Performance. With a resolution of 1200 x 1200 x 1600 DPI, it delivers exceptional surface quality and microscopic detail accuracy. The direct wax melting process significantly improves casting production efficiency, while the large build volume of 294 x 212 x 150 mm enables a fast, uninterrupted workflow for complex custom orders.

Workshop Suitability

With a net weight of 320 kg and a robust industrial chassis, the PL2000 Plus offers a rock-solid platform for continuous 24/7 operation. The machine features a high-capacity material system that accommodates up to 2 build and 2 support wax bottles, minimizing operator intervention. Full support for STL, SLC, OBJ, and AMF formats ensures a seamless transition from professional jewelry design software to the production floor.

Technological Recommendation

To maximize throughput, the system offers adjustable build speeds based on lane configuration, reaching up to 7.50 mm/hr in the Z-axis in high-speed mode. The use of original material packages (1.2kg build / 1.35kg support) ensures a precision of ± 0.08 mm per 20 mm, which is critical for accurate stone-in-place settings and complex mechanical jewelry assemblies.

Maintenance / Service

The device requires a stable 220-240V AC power supply via a single C14 socket. 3DFantom provides authorized installation, technical support, and regular maintenance of the MJP print heads to ensure consistent high-performance results and a long industrial lifespan.

PARAMETERS

• Technology: MultiJet Printing (MJP)

• Build Volume (xyz): 294 x 212 x 150 mm

• Resolution (xyz): 1200 x 1200 x 1600 DPI

• Layer Thickness: 16 μm (0.016 mm)

• Accuracy: ± 0.08 mm per 20 mm of part dimension

• Build Speed (Z): 7.50 mm/hr (1 Lane) / 3.50 mm/hr (2 Lanes) / 2.40 mm/hr (3 Lanes)

• Material Capacity: Max 2 Build (1.2kg) & 2 Support (1.35kg) bottles

• File Formats: STL, SLC, OBJ, AMF, MJPDDD

• Machine Size: 1272 x 780 x 1210 mm

• Weight: 320 kg (Net) / 430 kg (Gross)

• Electrical: 220-240V AC, 50/60Hz, 15A (C14 Socket)
