Plempire YHK-801R/102 Wax Set for PL2000

Applications

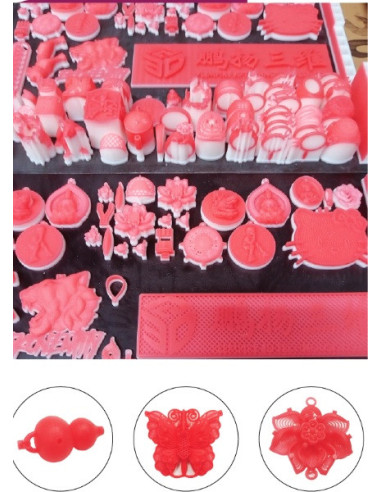

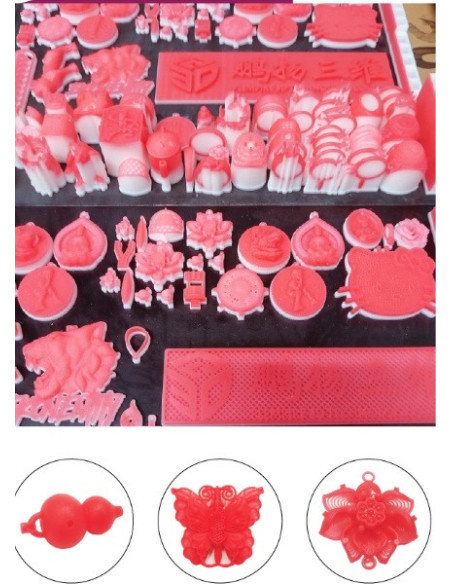

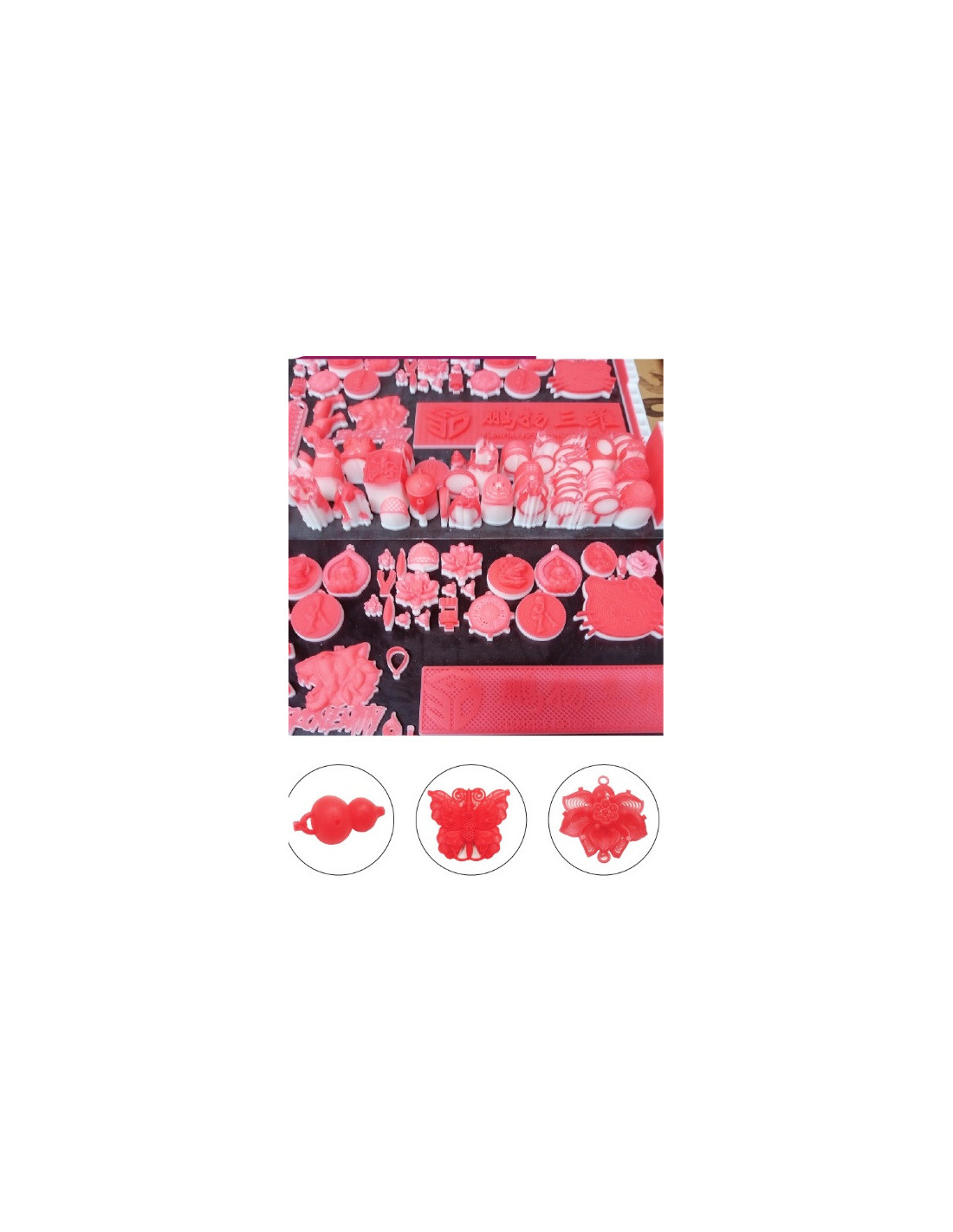

The Plempire YHK-801R (Build) and YHK-102 (Support) material system is a professional solution developed specifically for the PL2000 PLUS industrial wax 3D printer. This combination is designed for the fabrication of high-resolution jewelry patterns. The Red build wax creates the intricate jewelry model, while the White support wax enables the printing of complex, interlocking, and hollow geometries that remain perfectly clean after post-processing.

Advantages

This set is defined by its superior mechanical properties and high resolution. The YHK-801R build material is optimized for durability with a needle hardness of 7.2, ensuring that delicate prongs and fine filigree remain stable during handling. With a low linear contraction of only 0.52% and a minimal ash content of 0.019%, it guarantees dimensionally accurate castings free from surface inclusions. The YHK-102 support wax is contact-free and fully soluble, preserving the integrity of microscopic jewelry details without mechanical stress.

Workshop Suitability

Designed for direct investment casting of all precious metals. The high-contrast Red build material allows for easy visual inspection of details before casting. Due to the 100% wax composition, the burnout process is smooth and residue-free, significantly reducing the time required for final metal polishing and reducing precious metal loss in the workshop.

Technological Recommendation

The melting point of the support wax is set at 55°C, which is 13°C lower than the build material (68°C). This allows for safe and selective removal of supports in a thermostatic bath without any risk of model deformation. For optimal performance in the PL2000 PLUS system, we recommend maintaining a liquid phase delivery temperature of 95°C.

Maintenance / Service

Store materials in their original sealed containers at room temperature (15–25°C), away from direct sunlight. 3DFantom provides consistent supplies of fresh batches to ensure stable viscosity, protecting your PL2000 PLUS printheads from clogging and ensuring constant production quality.

PARAMETERS

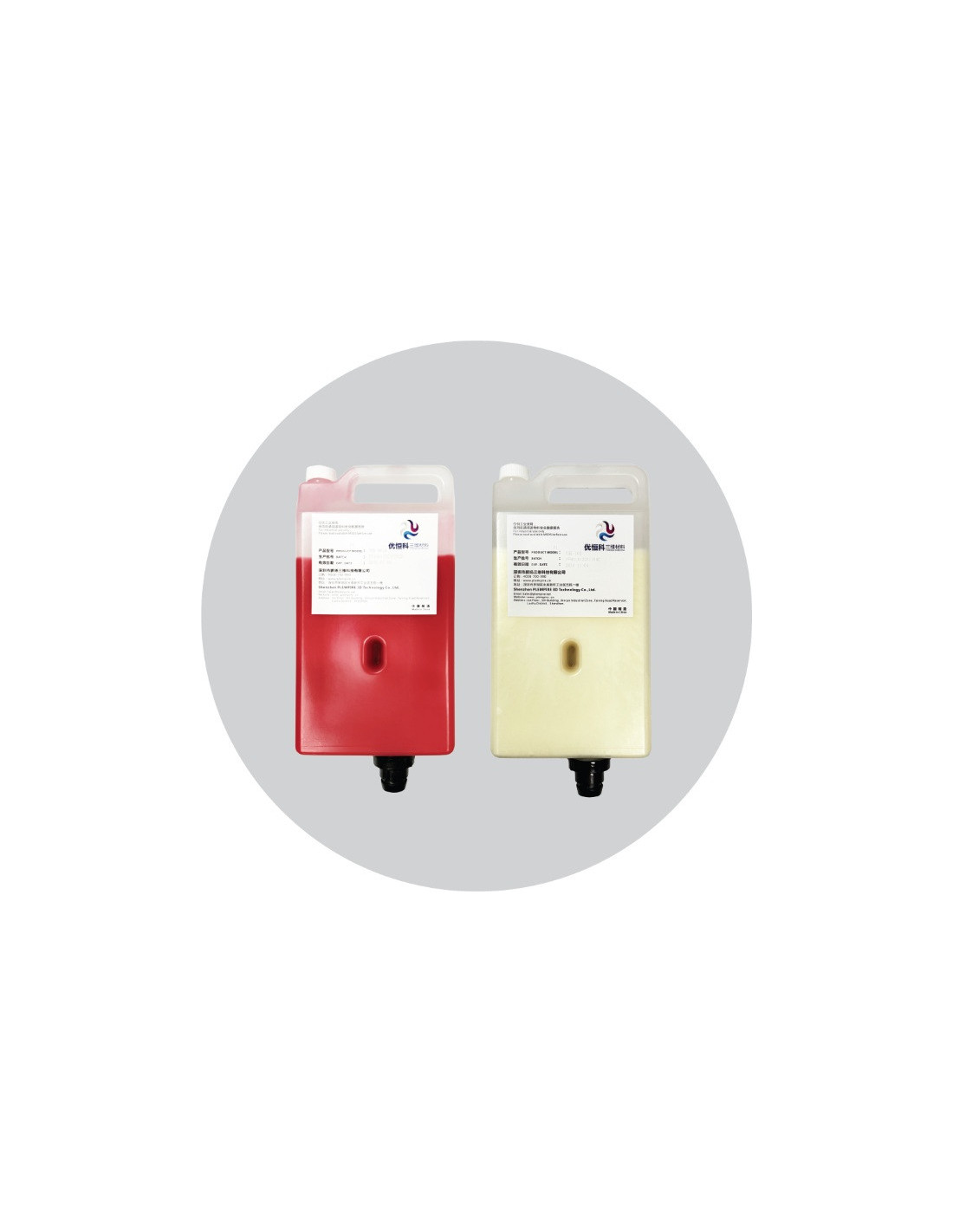

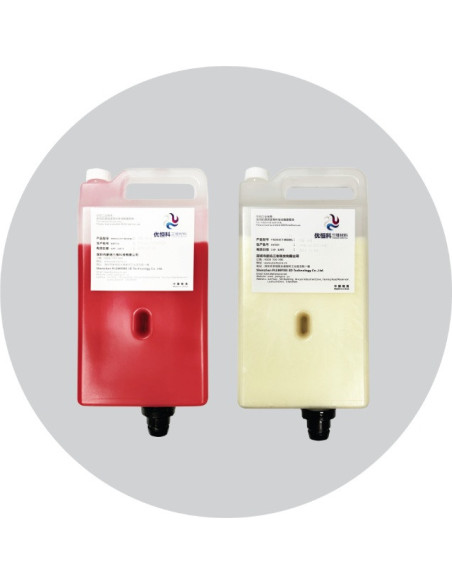

YHK-801R (Build Material)

• Type: High-resolution durable casting wax

• Component: 100% Wax

• Color: Red

• Weight: 1.2 kg

• Density @ 95°C (Liq.): 0.811 g/ml

• Melting Point: 68°C

• Softening Point: 63°C

• Linear Contraction: 0.52%

• Needle Hardness: 7.2

• Ash Content: 0.019%

• Compatibility: Plempire PL2000 PLUS

YHK-102 (Support Material)

• Type: Contact-free soluble support wax

• Component: 100% Wax

• Color: White

• Weight: 1.35 kg

• Density @ 95°C (Liq.): 0.85 g/ml

• Melting Point: 55°C

• Compatibility: Plempire PL2000 PLUS
