GALLONI G-THERM Burnout Furnace

Application

G-THERM burnout furnaces are an essential component of the lost-wax casting process. They are specifically designed for the precise heating of flasks, hardening of investments, and the complete elimination of modeling materials. Thanks to advanced oxygen ventilation control, these furnaces are invaluable for processing 3D-printed resins, ensuring a carbon-free burnout without damaging the internal mold cavity.

Advantages

The unit stands out with high-efficiency thermal insulation, guaranteeing absolute temperature uniformity throughout the chamber—a critical requirement for consistent, high-quality casting results. The integrated fume extraction system effectively removes combustion gases during the early stages of the burnout cycle. The digital control system allows for the storage of 10 independent programs, while the 7-day timer enables automated starts, ensuring flasks are ready exactly when the work shift begins.

Workshop Suitability

With three size variants available, G-THERM integrates seamlessly into any production environment. The Small model is perfect for compact studios and standard power outlets. The Medium model offers a balanced capacity-to-performance ratio for professional jewelry production. The industrial Large model requires a 400V connection and provides massive volume for high-capacity manufacturing and large industrial flasks.

Technological Recommendation

When burning out resin models, we highly recommend utilizing the forced ventilation feature to provide the necessary oxygen for complete polymer oxidation. This prevents soot formation and porosity in the final castings. Precise 10-step cycle programming allows for controlled temperature ramps, eliminating thermal shocks that could otherwise crack the investment molds.

Maintenance / Service

The stainless steel construction and high-grade insulation minimize maintenance requirements. 3DFantom provides full technical support, including the supply of replacement heating elements and expert advice on configuring specific burnout curves for various investment materials.

PARAMETERS (VARIANTS)

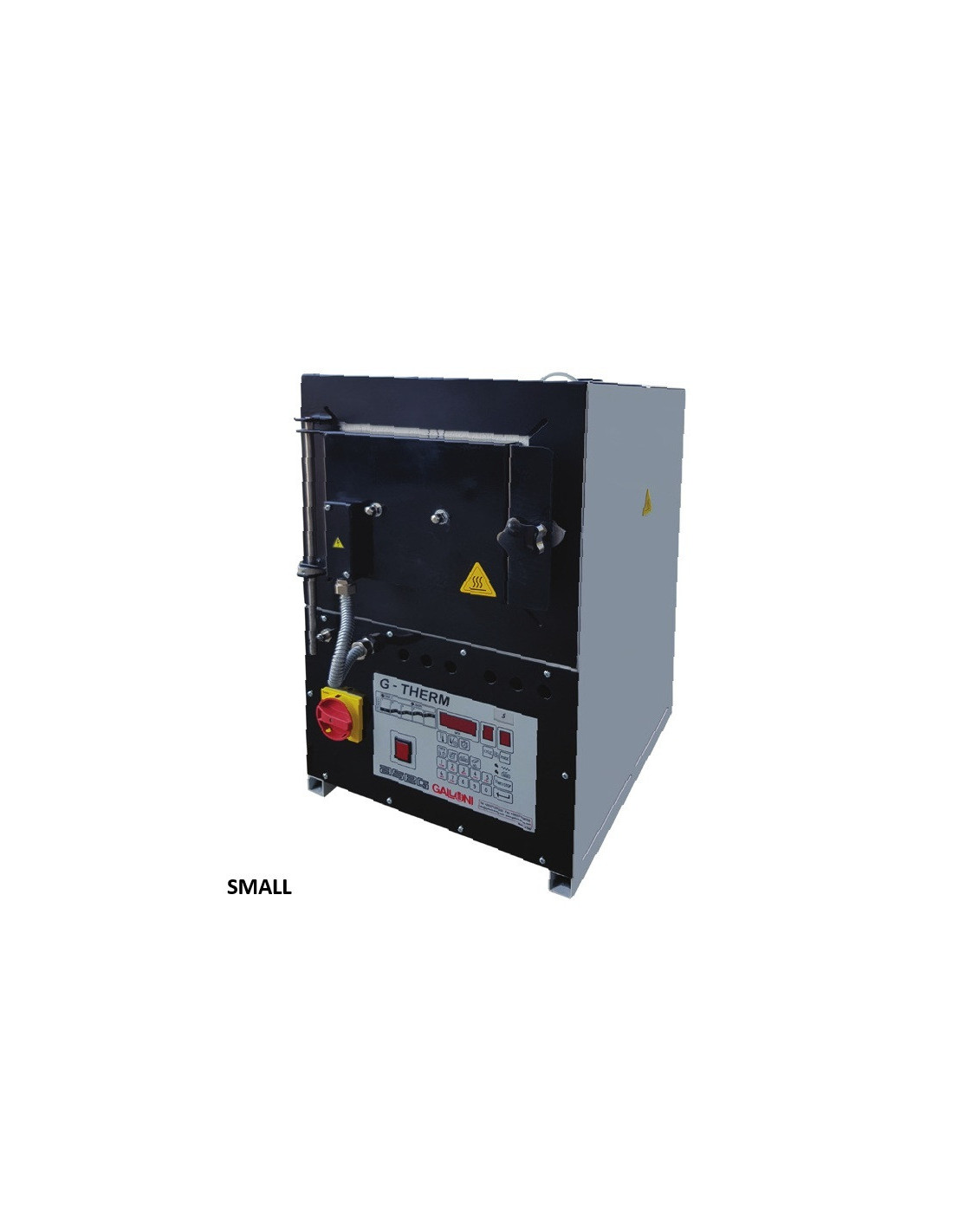

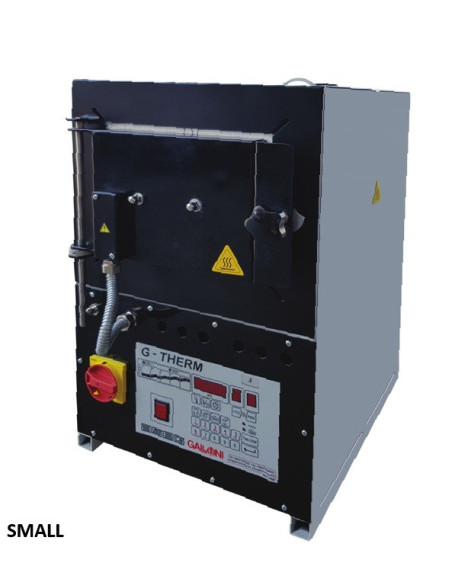

Model: G-THERM Small

• Power Supply: Single-phase 230 V (50/60 Hz)

• Power Consumption: 3.5 kW

• Chamber Dimensions: 165 x 280 x 150 mm (W x D x H)

• Overall Dimensions: 325 x 600 x 690 mm (W x D x H)

• Weight: 38 kg

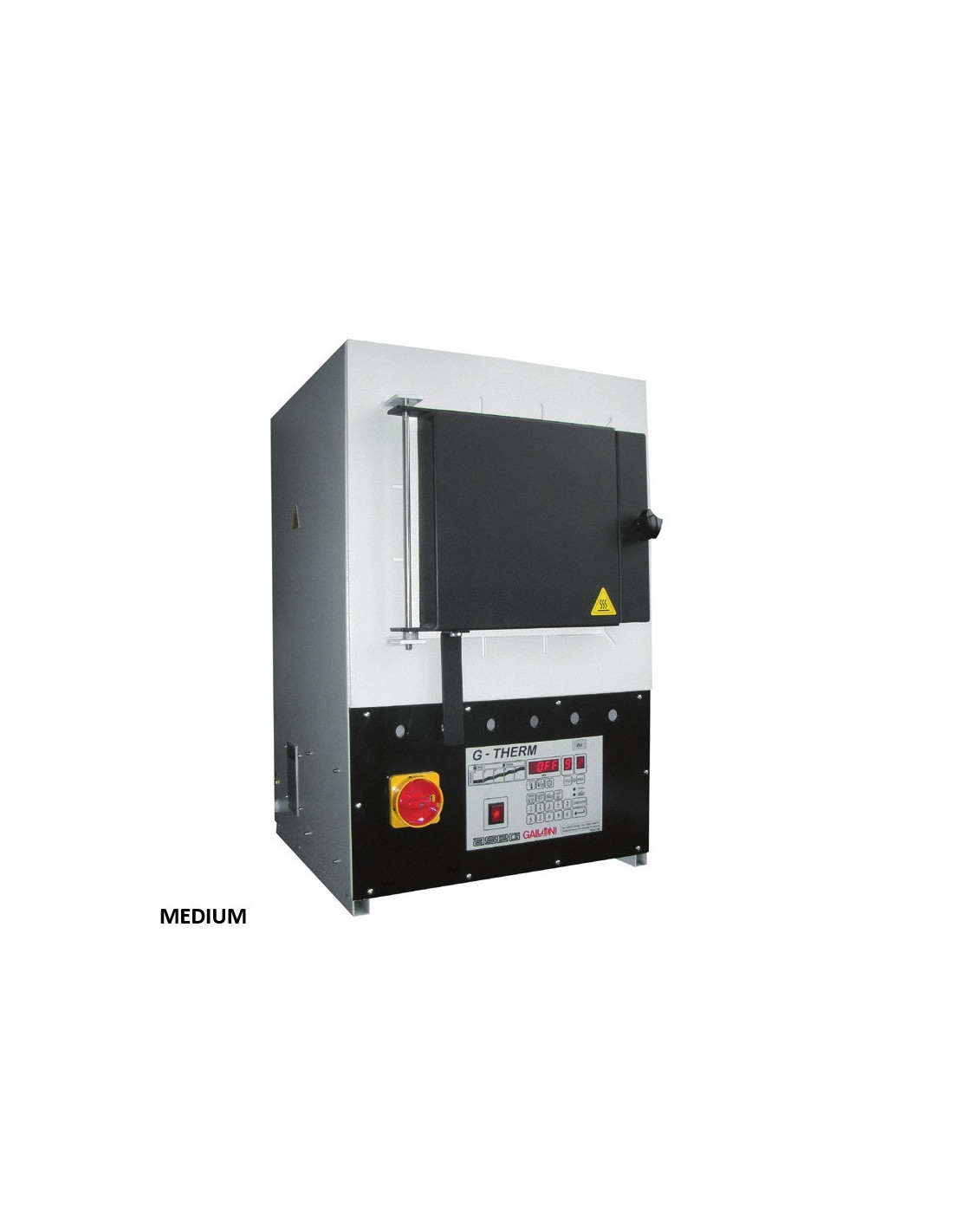

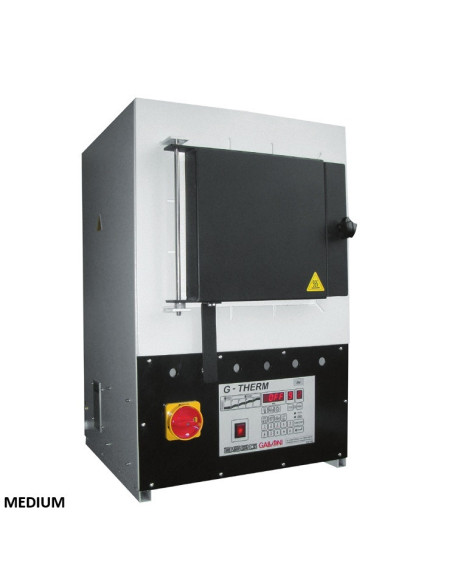

Model: G-THERM Medium

• Power Supply: Single-phase 230 V (50/60 Hz)

• Power Consumption: 4.5 kW

• Chamber Dimensions: 240 x 320 x 250 mm (W x D x H)

• Overall Dimensions: 530 x 700 x 800 mm (W x D x H)

• Weight: 100 kg

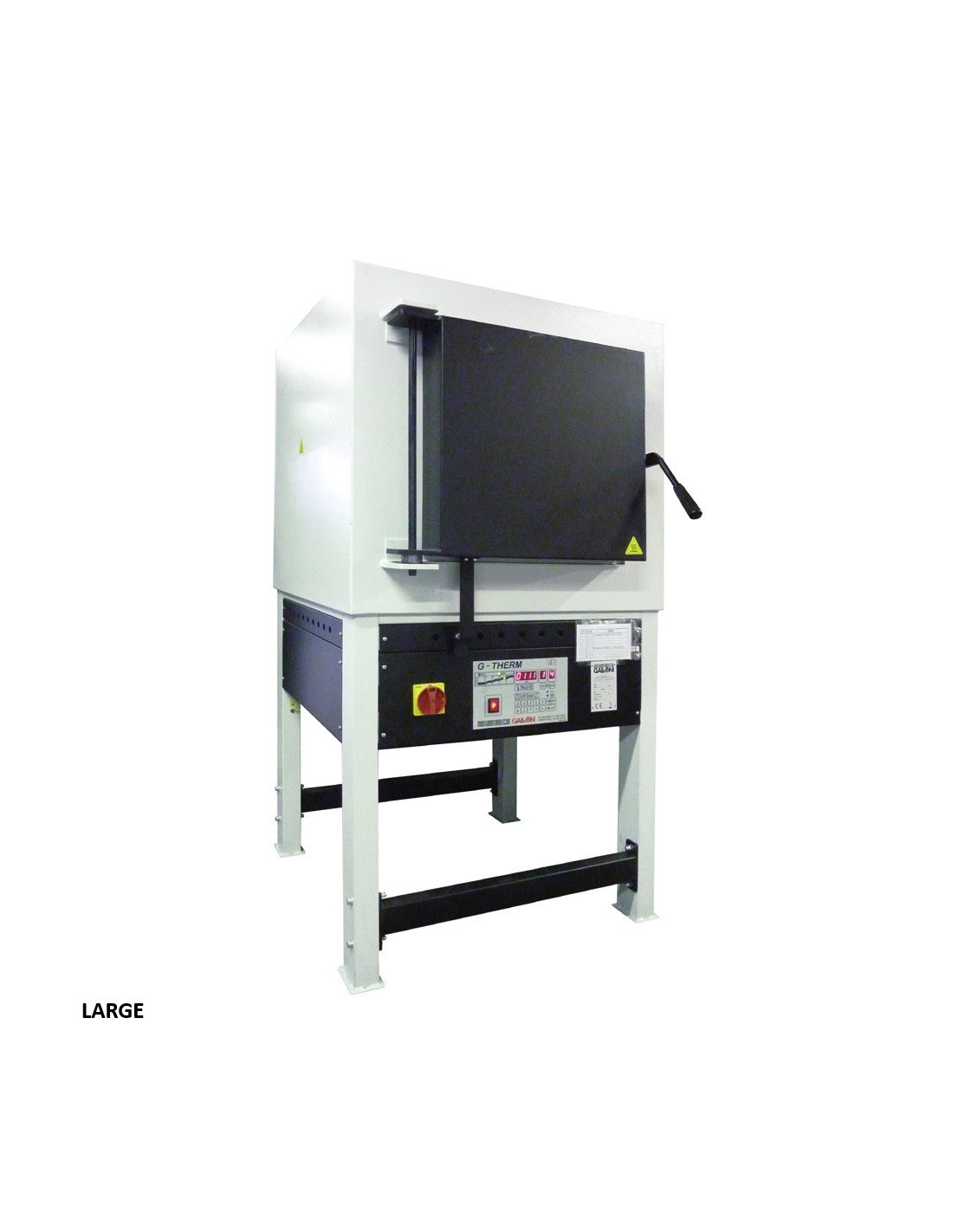

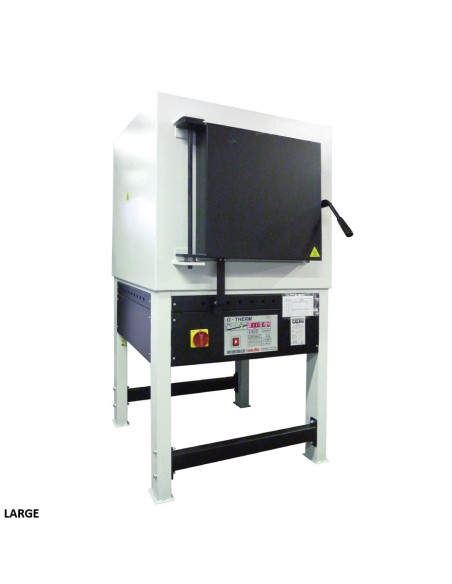

Model: G-THERM Large

• Power Supply: Three-phase 400 V (50/60 Hz)

• Power Consumption: 13 kW

• Chamber Dimensions: 400 x 500 x 400 mm (W x D x H)

• Overall Dimensions: 760 x 950 x 1360 mm (W x D x H)

• Weight: 300 kg

General Specifications:

• Maximum Temperature: 1000 °C

• Program Memory: 10 programmable cycles

• Timer: 7-day digital pre-set

• Construction: Stainless steel casing with high-efficiency insulation
