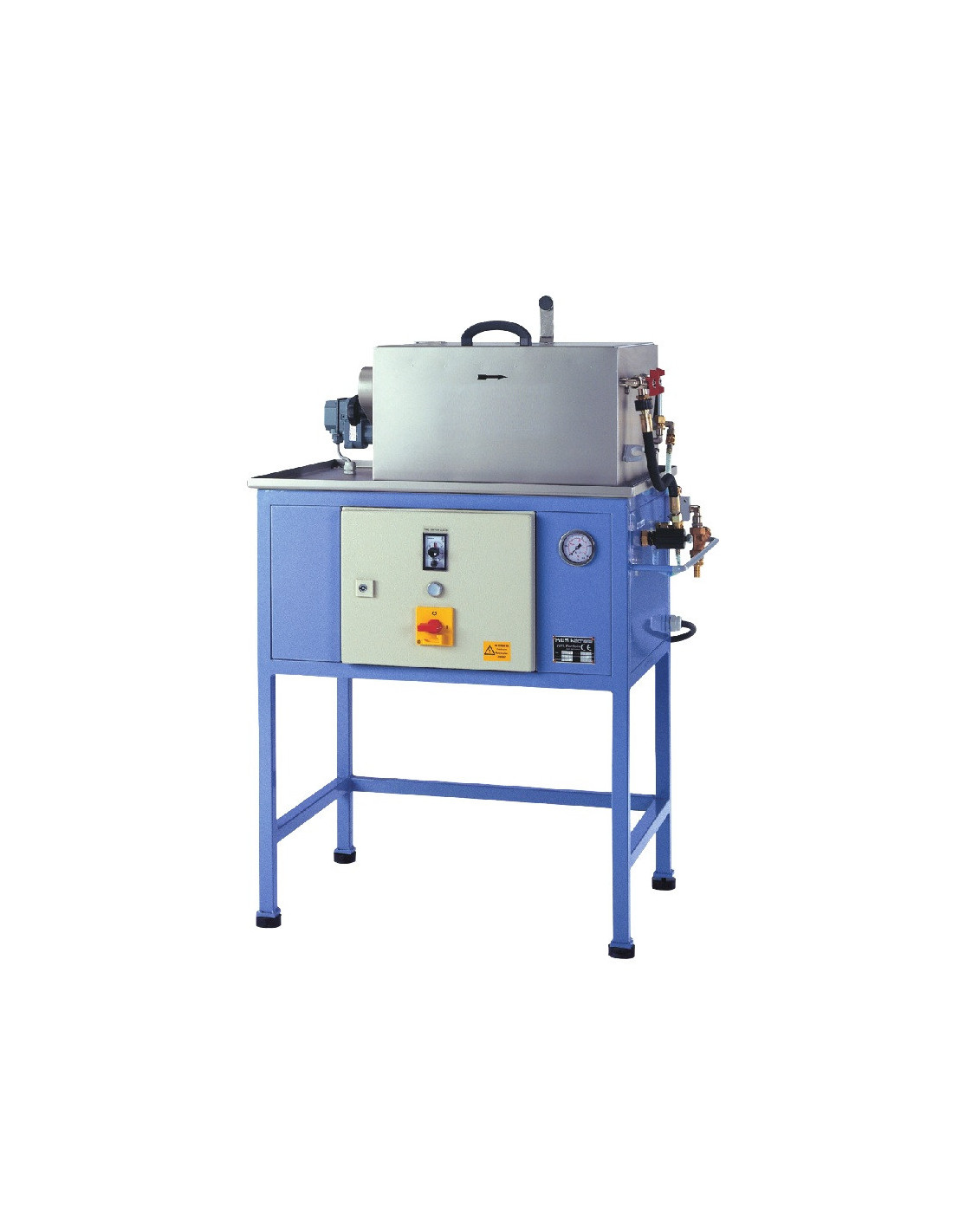

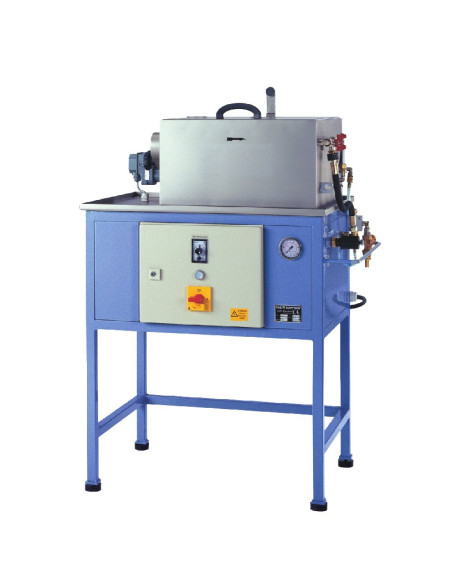

ARN Automatic Flask Braker and Casting Cleaner

Application

The ARN Automatic Flask Braker and Casting Cleaner represents a major step in rationalizing post-casting procedures. This system unifies two essential operations into one automated cycle: the unbedding of the casting tree from the flask and the subsequent removal of the investment compound. It is designed for high-volume jewelry manufacturers who require a clean, fast, and standardized process to prepare casting trees for the next production stage.

Advantages

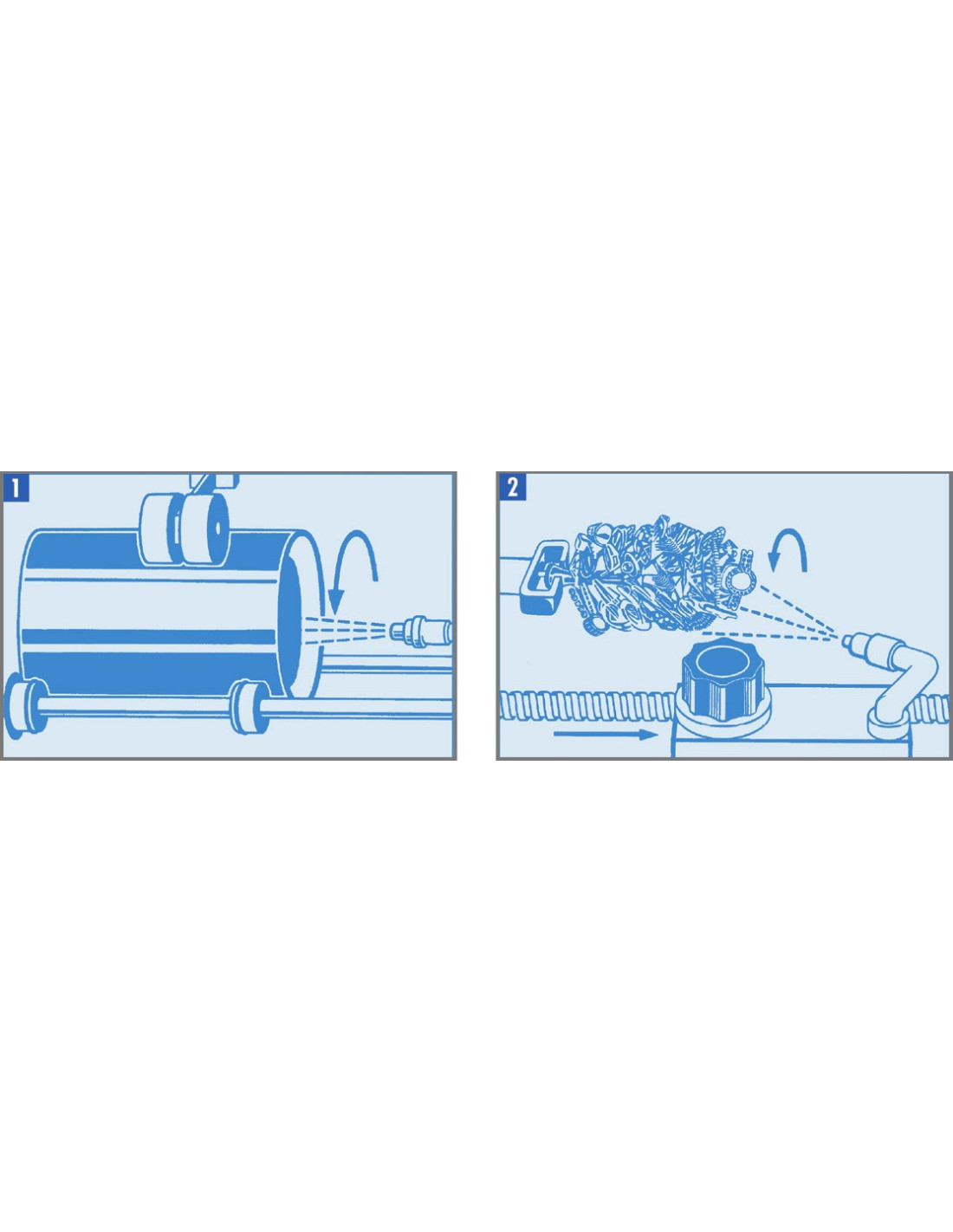

The system utilizes high-pressure water jet technology (adjustable from 60 to 95 bar). The first stage unbeds the tree from the flask using a circular section jet, while the second stage employs three movable jet nozzles to thoroughly clean the casting tree. A significant advantage is the preservation of delicate details; through adjustable jet intensity, there is no deformation of the castings or flasks. Furthermore, the process is safe for cast-in-place stones, ensuring stones remain undamaged and perfectly clean.

Workshop Suitability

This machine is engineered for maximum workshop productivity, reducing cleaning time to just 1 to 2.5 minutes per tree. Its automated nature means it can be operated by unskilled workers with minimal training. By eliminating manual gypsum removal, it creates a cleaner workspace and prevents the mechanical deformation of flasks. The unit is robust and capable of handling industrial flask sizes up to ø150 mm.

Technological Recommendation

For complex or highly dense casting trees, we recommend utilizing the optional additional nozzles to ensure water penetration into deep recesses. The adjustable pressure is vital when switching between robust brass castings and fragile silver filigrees. A perfectly cleaned tree allows for problem-free cutting of the castings and ensures that the remaining metal tree is free of investment residue, which is crucial for high-quality recycling and remelting.

Maintenance / Service

The machine requires a standard 3/4” water supply and adequate drainage. Maintenance is straightforward, focusing on the regular inspection of the carbide nozzles and ensuring the water filtration system is clear. 3DFantom provides full technical support, including installation, operator training, and the supply of specialized replacement nozzles to maintain peak performance.

PARAMETERS

• Power Supply: 400 V, 50 Hz

• Power Consumption: 5 kW

• Water Pressure: 60 – 95 bar (Adjustable)

• Max. Flask Diameter: 150 mm

• Max. Flask Height: 280 mm

• Max. Casting Tree Length: 280 mm

• Cleaning Time: 1 – 2.5 minutes

• Water Connection: 3/4”

• Water Consumption: 18 l/min

• Nozzle Configuration: 1x circular jet, 2x large jet nozzles (expandable)
