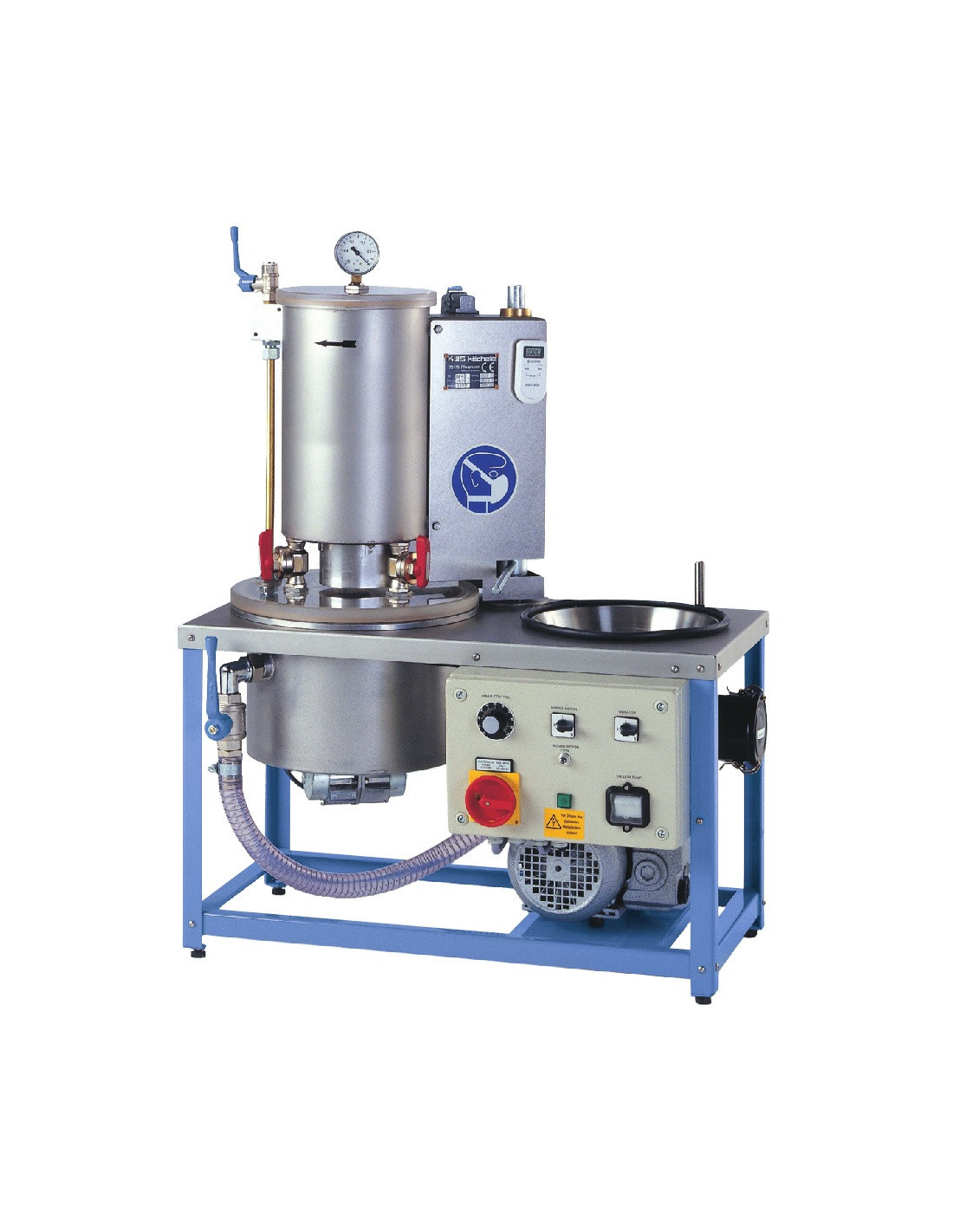

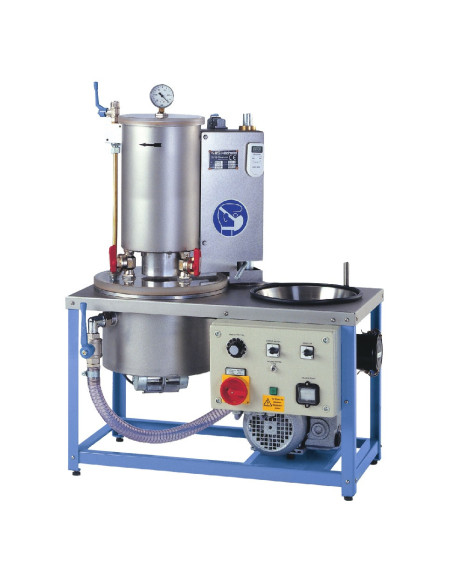

Galloni EB5 Vacuum Investment Mixer

Application

The Galloni EB5 is a heavy-duty vacuum investment mixer engineered for high-precision jewelry casting where surface perfection is paramount. Capable of mixing up to 6kg of investment compound per cycle, it allows for the simultaneous filling of up to 3 flasks. It is the ideal choice for medium-scale production environments and laboratories looking to eliminate manual errors and achieve industrial-grade consistency in their mold-making process.

Advantages

The defining feature of the EB5 is its integrated sieve insert. This system ensures that the investment powder is introduced to the water gradually under vacuum, preventing the powder from clumping or trapping air before contact. This method requires less water to reach the desired viscosity, resulting in a significantly denser and stronger plaster. The outcome is a cast with exceptional contour sharpness and a total absence of surface bubbles—a standard of quality unmatched by atmospheric mixers.

Workshop Suitability

Built for the rigors of a professional casting house, the EB5 features a maintenance-free three-phase motor and a robust stainless steel and aluminum chassis. The machine is designed for clean operation; its two-speed gearbox allows the operator to switch between high-speed mixing and controlled, splash-free flask filling. Its high efficiency and reduction in failed casts guarantee a rapid return on investment for any jewelry studio.

Technological Recommendation

To maximize the lifespan of your vacuum system, the EB5 is equipped with a specialized filter system to protect the pump from fine investment dust. We recommend regular inspection of these filters to maintain peak vacuum performance. For optimal results with fine-detail resin models, utilize the vacuum-filling stage to ensure the investment fully encapsulates every intricate undercut of the 3D-printed tree.

Maintenance / Service

Thanks to the use of corrosion-resistant alloys and stainless steel, the EB5 requires minimal upkeep. The drive motor and stirring element remain connected during the entire process, eliminating the mechanical wear associated with frequent assembly and disassembly. 3DFantom provides full technical support, replacement filter sets, and high-quality seals to keep your production line running smoothly.

PARAMETERS

• Investment Capacity: 6 kg

• Flask Capacity: Max. 3 flasks simultaneously

• Max. Flask Dimensions: ø 120–140 mm / Height 170 mm

• Motor Type: Maintenance-free three-phase

• Power Supply: 400 V, 50 Hz, 1.3 kW

• Speed Control: 2-speed gearbox (Mixing / Filling)

• Material Construction: Stainless Steel and Aluminum

• Safety Features: Integrated vacuum pump filter system
