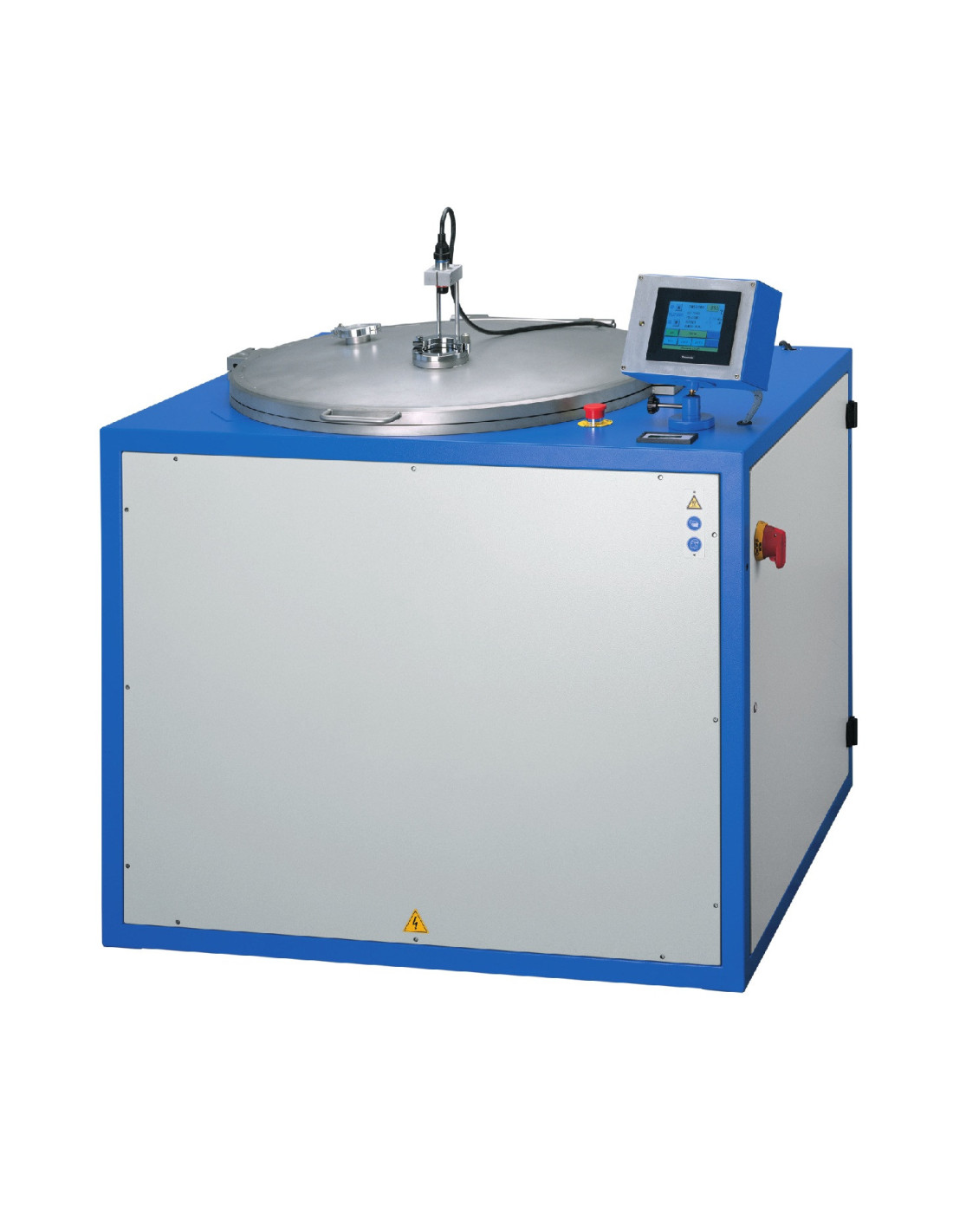

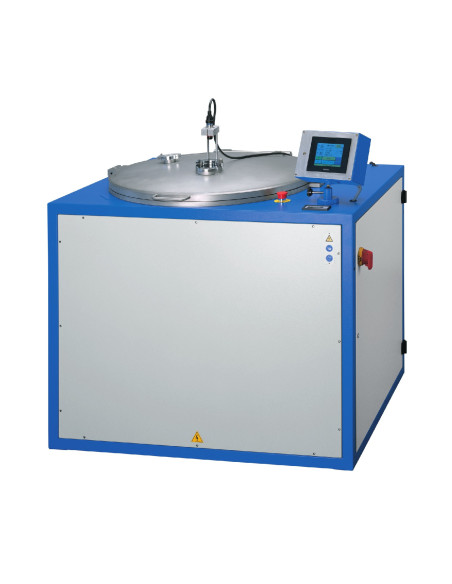

Galloni Titancast Titanium Casting Machine

Application

The Galloni Titancast is a specialized centrifugal casting machine engineered for reactive metals and high-melting-point alloys. Specifically developed for Titanium, it also provides world-class results for Platinum, Steel, and precious metals. This machine is the benchmark for high-tech jewelry manufacturing, medical laboratories, and industrial prototyping where metal purity and atmospheric control are non-negotiable.

Advantages

The Titancast stands out with its high-vacuum chamber standards. Unlike standard flat-lid designs, both the bottom and cover of the chamber are convex, a critical feature for maintaining extreme vacuum levels of 0.001 mbar ($1 \times 10^{-3}$). Melting is powered by a 10kW medium-frequency induction system with a self-stirring effect to ensure metallurgical homogeneity. For the pour, a dynamic double-swing arm ensures a straight, smooth entry of the molten metal into the flask center, minimizing turbulence.

Workshop Suitability

As a 320kg industrial-grade station, the Titancast is built for environments requiring 24/7 reliability and zero contamination. It accommodates flasks up to ø 120 mm, making it versatile for complex resin or wax trees. The three-phase 10kW generator allows for rapid cycles, making it highly productive even when processing difficult materials like titanium or stainless steel.

Technological Recommendation

When casting Titanium, achieving the highest possible vacuum before melting is vital to prevent oxygen absorption and subsequent embrittlement. We recommend using high-purity Argon or Nitrogen as the inert atmosphere. The integrated LAND Instrument Dual-Color Optical pyrometer (up to 2100°C) offers ± 1% accuracy, which is essential for hitting the narrow casting windows of specialty alloys.

Maintenance / Service

The machine requires an external high-capacity vacuum pump (75 m³/h) and a closed-circuit water cooling system. Regular maintenance of the convex chamber seals and calibration of the optical pyrometer are necessary for consistent performance. 3DFantom provides industrial installation, operator training, and specialized crucibles designed specifically for Titanium and Platinum casting.

PARAMETERS

• Casting Capacity: 350g Ti, 500g Pt, 1.8kg Au (18kt), 500g Steel

• Crucible Capacity (Ti): Max. 200g

• Vacuum Level: 0.001 mbar ($1 \times 10^{-3}$)

• Induction Power: 10 kW (Three-phase 230/400/415 V)

• Temperature Control: LAND Dual-Color Optical Pyrometer (up to 2100°C)

• Flask Dimensions: Max. ø 120 mm x 160 mm (h)

• Vacuum Pump Req.: External 75 m³/h

• Cooling: Water 3 l/min at 4 bar

• Dimensions & Weight: 1150 x 860 x 1300 mm / 320 kg
