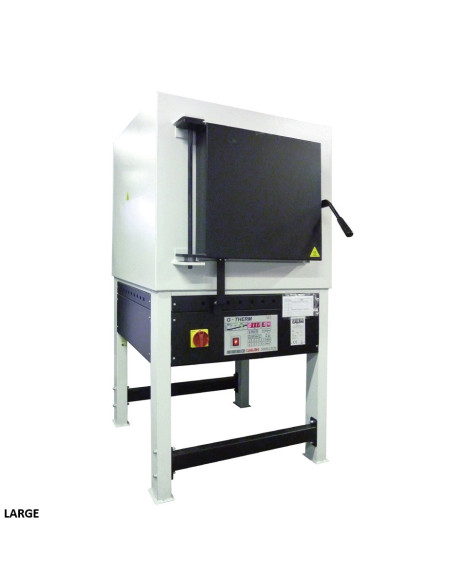

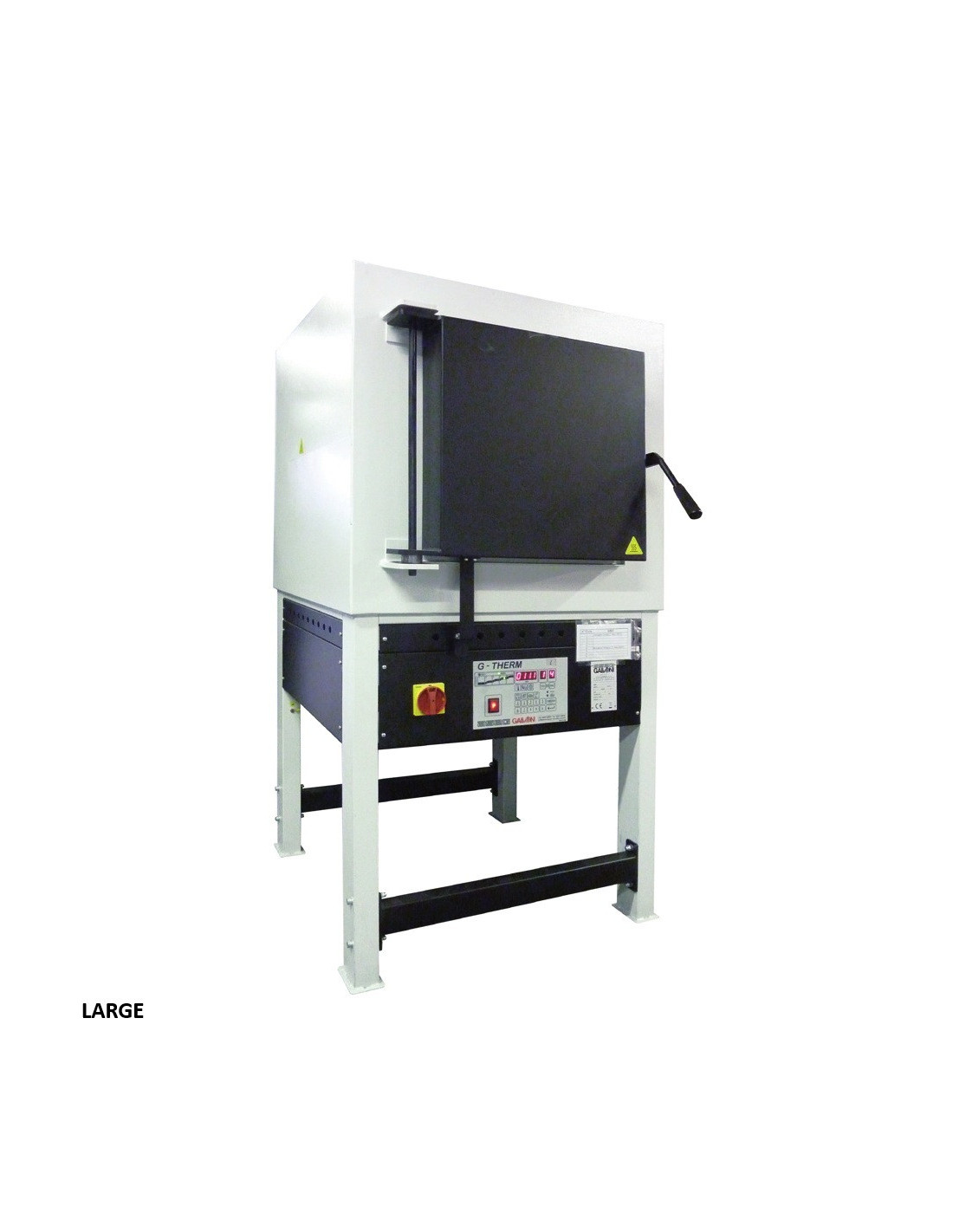

Galloni G-THERM Large Burnout Furnace

Application

The Galloni G-THERM Large is the heavy-duty flagship of the G-THERM series, specifically engineered for industrial jewelry manufacturing and large-scale casting laboratories. With a massive chamber volume (400 x 500 x 400 mm), it is designed to process dozens of flasks simultaneously, ensuring a continuous supply of molds for high-capacity casting lines. It provides the thermal precision required for both traditional wax burnout and complex polymer resin cycles.

Advantages

The primary advantage of the Large model is its ability to maintain absolute temperature uniformity across a massive firing chamber, a critical requirement for consistent casting results.

• Industrial Power: The 13 kW heating system provides rapid recovery times and stable high-temperature maintenance up to 1000 °C.

• Total Control: The digital interface allows for 10 independent pre-programmed burnout cycles, with real-time progress monitoring.

• Resin-Ready Environment: Efficient fume extraction and specialized oxygen ventilation are standard, ensuring that resin-based models are carbonized and evaporated completely without leaving ash residue.

Workshop Suitability

Due to its 300 kg weight and high power requirements, this furnace is designed for a permanent position within a technical casting facility. It requires a three-phase 400 V electrical connection. The integrated 7-day timer is an essential feature for industrial workflows, allowing the chamber to be pre-heated automatically so that flasks are ready for casting at the exact moment the production shift begins.

Technological Recommendation

When fully loading the chamber with 3D printed resin models, we recommend extending the oxygen ventilation phases. This ensures that even the flasks located in the center of the dense load receive sufficient oxygen for total oxidation of the resin. Utilizing the 10-program memory allows you to fine-tune specific "ramps" for different investment types, minimizing the risk of flask cracking.

Maintenance / Service

The G-THERM Large is built for 24/7 industrial durability. Its high-grade insulation and robust heating elements are designed for longevity. Maintenance primarily involves checking the thermocouples for accuracy and ensuring the ventilation ports remain clear of investment dust. 3DFantom provides professional installation, calibration services, and a full range of original replacement parts for three-phase Galloni systems.

PARAMETERS

• Maximum Temperature: 1000 °C

• Chamber Dimensions: 400 mm (w) x 500 mm (d) x 400 mm (h)

• Electrical: Three-phase 400 V, 50/60 Hz

• Power Output: 13 kW

• Weight: 300 kg

• Overall Dimensions: 760 x 950 x 1360 mm (h)

• Control System: Digital, 10 programmable cycles

• Automation: 7-day pre-set timer

• Safety: Efficient fume extraction & oxygen ventilation
