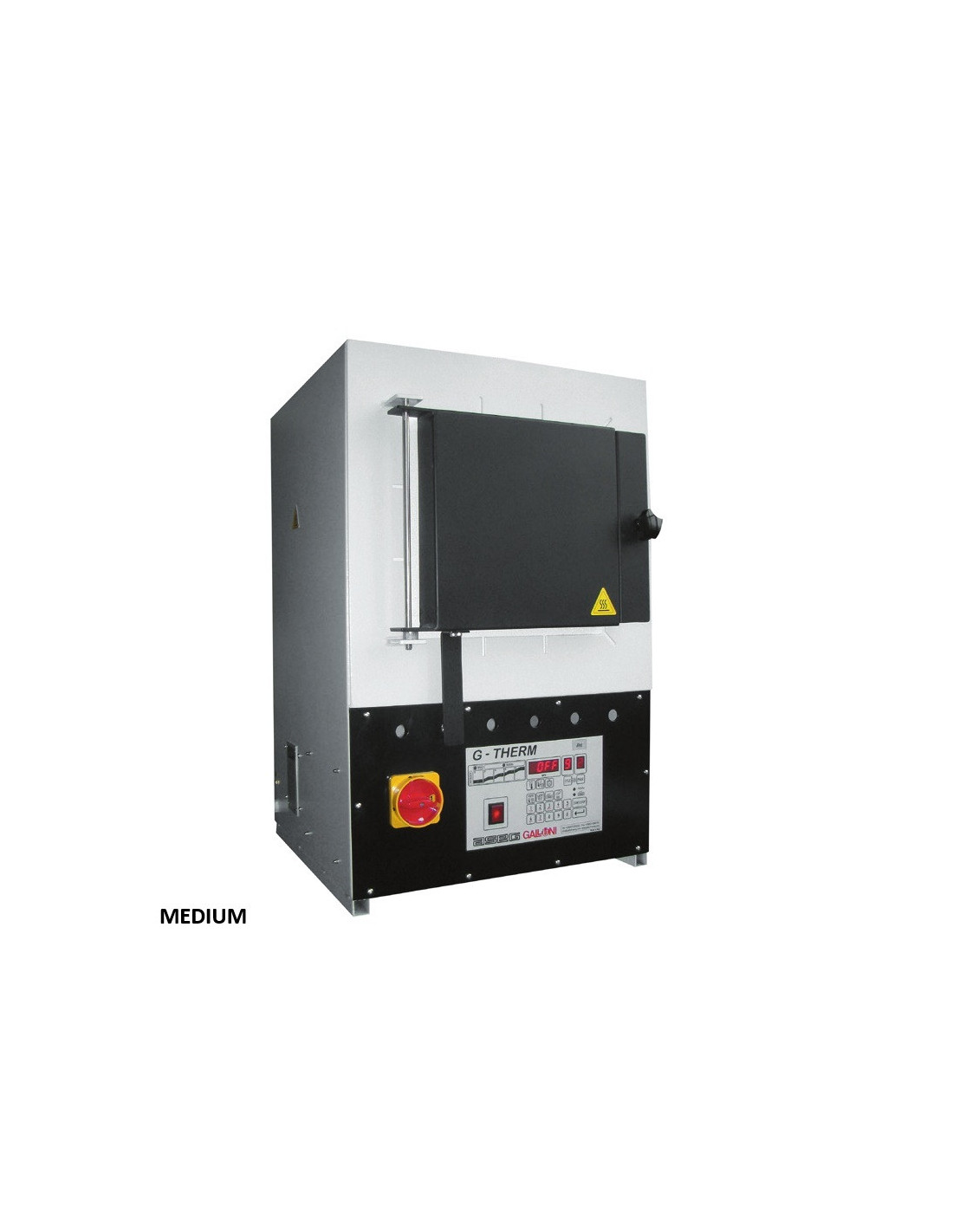

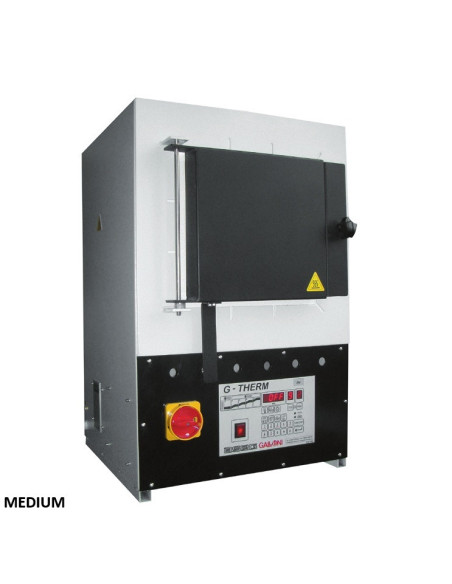

Galloni G-THERM Medium Burnout Furnace

Application

The Galloni G-THERM Medium is a robust, industrial-grade burnout furnace designed for high-volume jewelry production and dental laboratories. With an expanded chamber (240 x 320 x 250 mm), it allows for the simultaneous processing of multiple flasks, providing the throughput necessary for busy casting schedules. It is engineered to maintain absolute temperature uniformity, which is a critical prerequisite for achieving consistent, high-quality results in gold and silver casting.

Advantages

The furnace is characterized by its superior thermal insulation, ensuring maximum energy economy and a stable environment for investment molds.

• Digital Intelligence: The control system supports 10 different pre-programmed burnout cycles, allowing for standardized protocols across various materials.

• Resin-Ready Performance: Integrated oxygen ventilation and efficient fume extraction are included, making it indispensable for resin castings to ensure complete combustion without ash residue.

• Operational Readiness: A built-in 7-day timer allows for precise pre-setting, ensuring the furnace reaches the required temperature exactly when your workday begins.

Workshop Suitability

Despite its significant 100 kg build and 4.5 kW power output, the G-THERM Medium operates on a standard single-phase 230 V supply. This makes it a powerful yet accessible solution for professional workshops that need industrial capacity without the requirement for three-phase electrical infrastructure. The digital display provides constant feedback on cycle progress, ensuring total process control.

Technological Recommendation

To maximize the quality of castings from 3D printed resins, we recommend utilizing the oxygen ventilation during the entire thermal degradation phase. The G-THERM Medium’s thermal stability allows for flasks to be placed throughout the chamber without fear of cold spots, optimizing the productivity of every burnout cycle.

Maintenance / Service

The furnace is designed for long-term industrial reliability. Maintenance involves regular inspection of the heating elements and cleaning the chamber to prevent investment dust accumulation. 3DFantom provides full technical support, authorized service, and replacement parts to keep your casting production at peak efficiency.

PARAMETERS

• Max. Working Temperature: 1000 °C

• Chamber Dimensions: 240 mm (w) x 320 mm (d) x 250 mm (h)

• Programming: 10 independent burnout cycles

• Timer: 7-day programmable pre-set timer

• Electrical: Single-phase 230 V, 50/60 Hz

• Power Consumption: 4.5 kW

• Weight: 100 kg

• Overall Dimensions: 530 mm x 700 mm x 800 mm (h)
