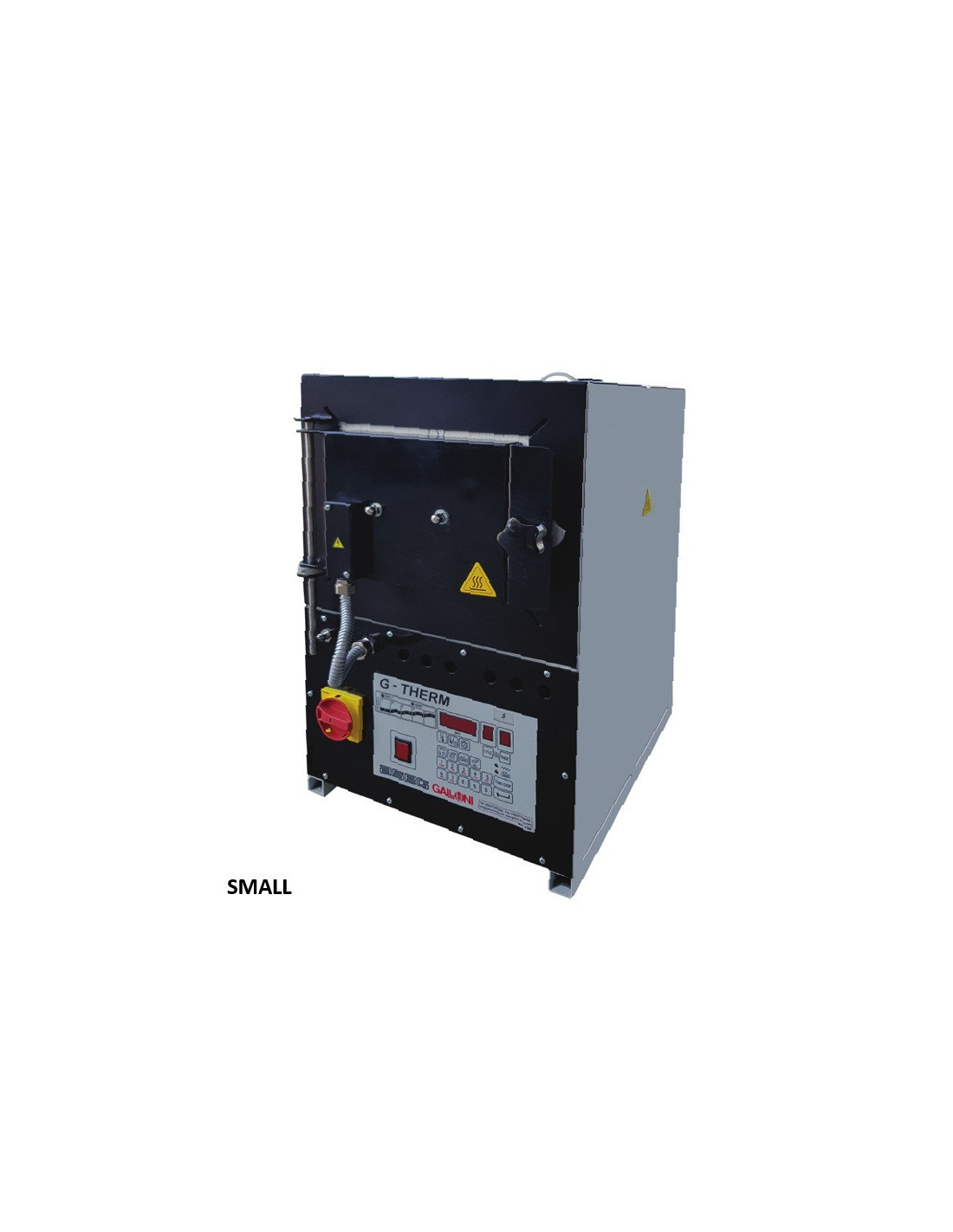

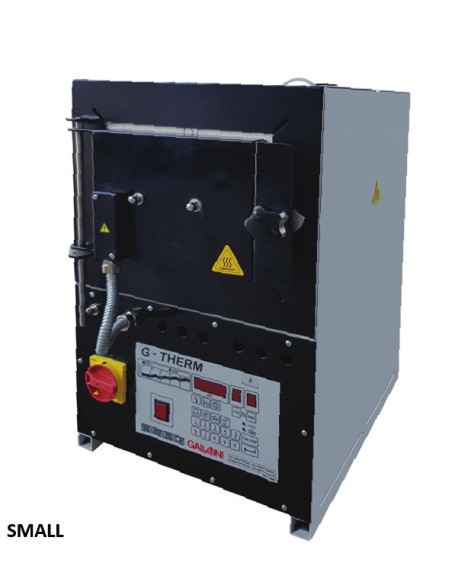

Galloni G-THERM Small Burnout Furnace

Application

The Galloni G-THERM Small is a professional-grade burnout furnace engineered for jewelry workshops and laboratories that demand absolute precision in thermal processing. Achieving an even temperature throughout the firing chamber is a critical prerequisite for high-quality casting. This furnace is specifically designed to handle the rigorous burnout cycles required for traditional waxes and modern investment materials, ensuring that flasks are perfectly prepared for the centrifugal or vacuum casting process.

Advantages

The G-THERM series stands out due to its superior thermal insulation, which provides exceptional temperature uniformity and high energy efficiency.

• Advanced Control: The digital system allows for 10 different pre-programmed burnout cycles, with the progress of each stage constantly displayed for the operator.

• Resin Optimization: Integrated oxygen ventilation and efficient fume extraction are included, which are indispensable for resin castings to ensure complete combustion and ash-free molds.

• Automation: Equipped with a 7-day timer, the furnace can be pre-set to start automatically, ensuring flasks are ready for casting exactly when the workday begins.

Workshop Suitability

With its compact footprint and single-phase 230 V power requirement, the G-THERM Small is an ideal fit for small to medium-sized studios. Despite its size, it offers a robust 3.5 kW output and a maximum working temperature of 1000 °C, providing enough headroom for all types of precious metal investment powders and specialty stones-in-place cycles.

Technological Recommendation

When processing 3D printed resin models, we recommend utilizing the oxygen ventilation feature during the early phases of the burnout. This ensures that the resin carbonizes and evaporates completely, preventing surface defects on the final metal casting. Standardizing your ramps and soak times using the 10-program memory will guarantee consistent results across different alloys.

Maintenance / Service

The furnace is built for industrial longevity with easily accessible heating elements and high-quality thermocouples. Maintenance is minimal, primarily involving periodic inspections of the chamber interior and ventilation ports. 3DFantom provides full technical support, replacement parts, and expert advice on programming your specific burnout curves.

PARAMETERS

• Max. Temperature: 1000 °C

• Chamber Dimensions: 165 mm (w) x 280 mm (d) x 150 mm (h)

• Programming: 10 independent burnout cycles

• Timer: 7-day programmable pre-set timer

• Electrical: Single-phase 230 V, 50/60 Hz

• Power Output: 3.5 kW

• Weight: 38 kg

• Overall Dimensions: 325 mm x 600 mm x 690 mm (h)
