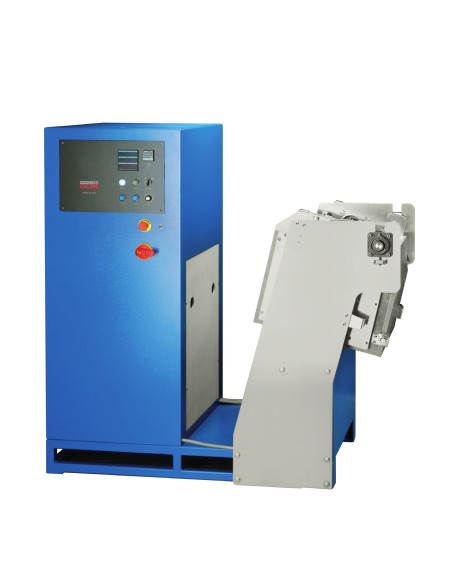

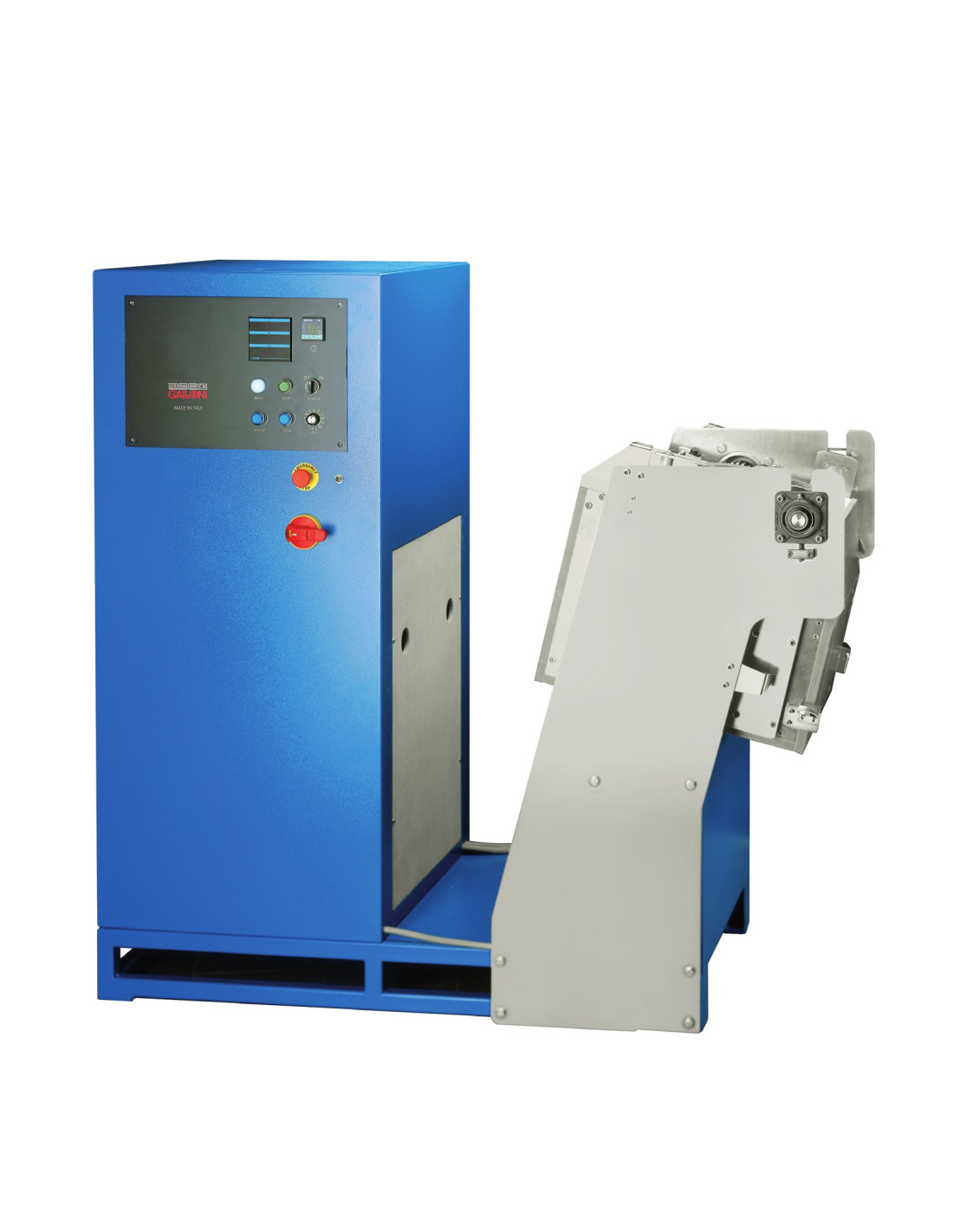

Galloni K40 Induction Tilting Furnace 40kW

Application

The Galloni K40 is the flagship of the induction tilting series, designed for industrial refineries, mints, and large-scale jewelry manufacturing centers. This medium-frequency furnace is engineered for processing massive volumes of precious metals, providing a standardized and highly efficient solution for melting and pouring into large ingots or continuous casting systems.

Advantages

Equipped with a massive 40kW latest-generation generator, the K40 delivers unmatched melting speed and thermal efficiency. The tilting head is connected via heavy-duty water-cooled copper pipes, allowing for continuous operation under heavy industrial loads. The precision of the generated magnetic field ensures absolute alloy homogeneity through electromagnetic stirring, maintaining the metal's physical and metallurgical integrity even at a 25kg capacity.

Workshop Suitability

Built for heavy-duty environments, the K40 features a robust stainless steel bar frame and stands 1.8 meters tall. Despite its power, it offers precise control via a digital interface and a dedicated push-button panel for the tilting mechanism. An integrated emergency stop ensures operator safety during the handling of large volumes of molten metal.

Technological Recommendation

With 40kW of induction power, this furnace is exceptionally capable of melting 20kg of silver rapidly, which is critical to minimize oxygen absorption and gas porosity. For high-volume gold refining, the K40 provides the thermal stability required to maintain consistent pouring temperatures, ensuring high-density castings with minimal material loss.

Maintenance / Service

Due to the extreme electrical currents and thermal output, the K40 requires a high-flow cooling water system (3 l/min at 4 bar). Regular inspection of the induction coil and the flexibility of the water-cooled copper connections is mandatory. 3DFantom provides comprehensive industrial support, including on-site installation, staff training for large-scale melting, and a reliable supply of high-capacity crucibles.

PARAMETERS

• Power Supply: 230/400/415 V – 50/60 Hz

• Power Output: 40 kW

• Cooling: Water (3 l/minute at 4 bar)

• Casting Capacity: 25 kg Au / 20 kg Silver

• Control System: Digital control with push-button tilting panel

• Construction: Industrial-grade stainless steel frame

• Overall Dimensions: 1650 x 700 x 1800 mm

• Weight: 500 kg
