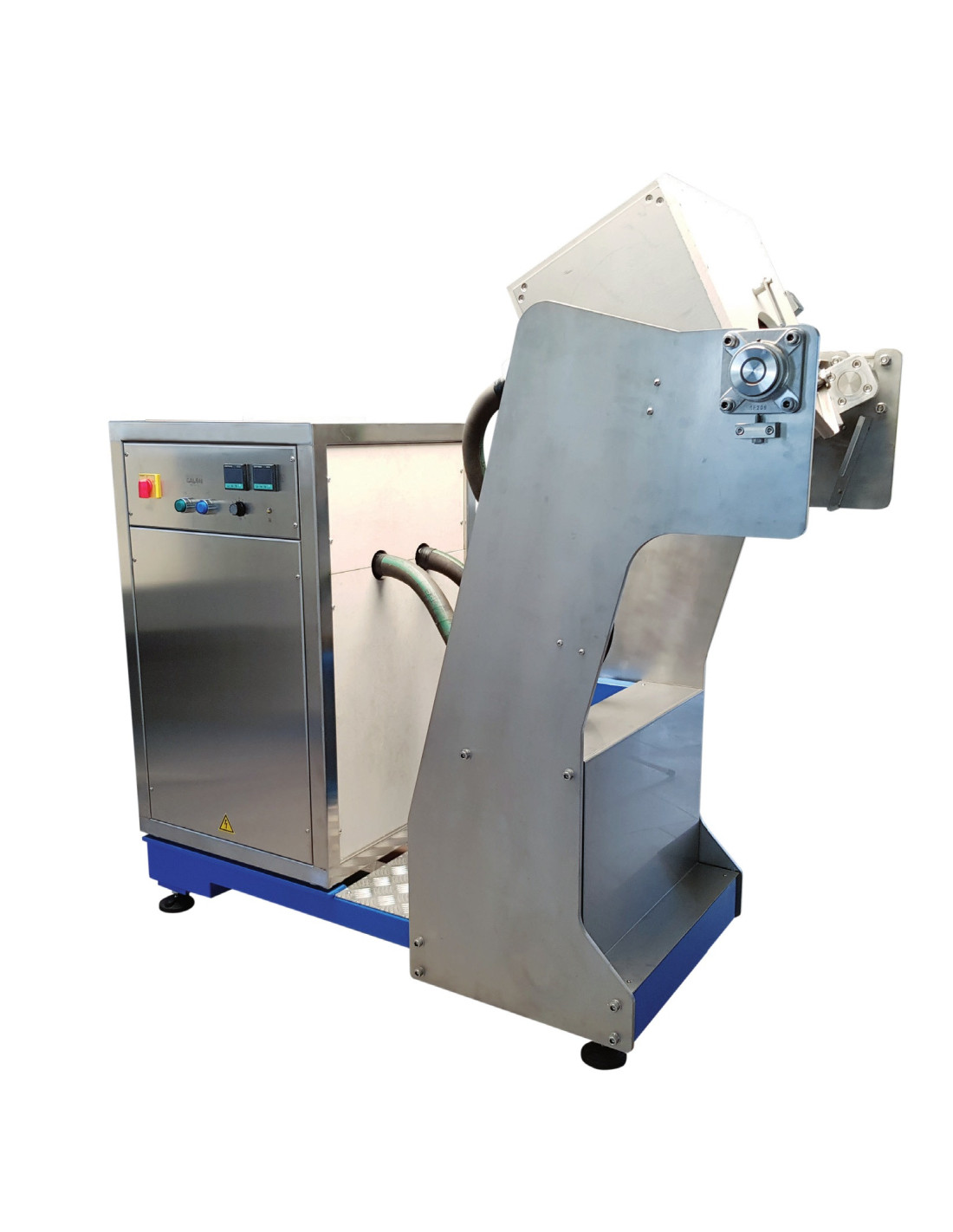

Galloni K20 Induction Tilting Furnace 20kW

Application

The Galloni K20 is a heavy-duty electronic medium frequency induction furnace designed for large-scale alloy melting, refining, and industrial jewelry production. This tilting model is engineered to handle substantial volumes of precious metals, providing a safe and efficient solution for pouring large melts into ingots or casting molds without the need for manual crucible handling.

Advantages

Equipped with a powerful 20kW latest-generation generator, the K20 ensures an exceptionally fast melting process even at full capacity. The tilting head is connected to the induction system via high-grade water-cooled copper pipes, all integrated into a sturdy stainless steel bar frame. The induction technology generates a high-quality magnetic field that achieves superior alloy homogeneity, ensuring consistent metallurgical properties throughout the 13kg melt.

Workshop Suitability

Designed for continuous industrial operation, the K20 features a stable base and a weight of 500 kg to ensure zero vibration during the pouring process. Operation is simplified through a dedicated push-button panel for tilting and an easily accessible emergency stop for maximum safety. The digital control interface allows operators to optimize power levels and melting times for maximum yield.

Technological Recommendation

With a 20kW output, this furnace is highly efficient for melting large batches of silver (up to 15kg) where speed is essential to prevent oxygen absorption. For high-volume gold recycling, the electromagnetic stirring effect provided by the induction field ensures that all alloying elements are perfectly unified, resulting in high-density, high-quality material ready for further processing.

Maintenance / Service

Due to its high power and moving parts, the K20 requires a reliable cooling water supply (3 l/min at 4 bar) and periodic inspection of the tilting mechanism. Maintenance should focus on the integrity of the water-cooled pipes and the cleanliness of the induction coil. 3DFantom provides professional installation, technical support, and a steady supply of high-capacity graphite crucibles.

PARAMETERS

• Power Supply: 230/400/415 V – 50/60 Hz

• Power Output: 20 kW

• Cooling: Water (3 l/minute at 4 bar)

• Casting Capacity: 13 kg Au / 15 kg Silver

• Control System: Digital control with push-button tilting panel

• Construction: Heavy-duty stainless steel frame with tilting head

• Overall Dimensions: 1300 x 900 x 1400 mm

• Weight: 500 kg
