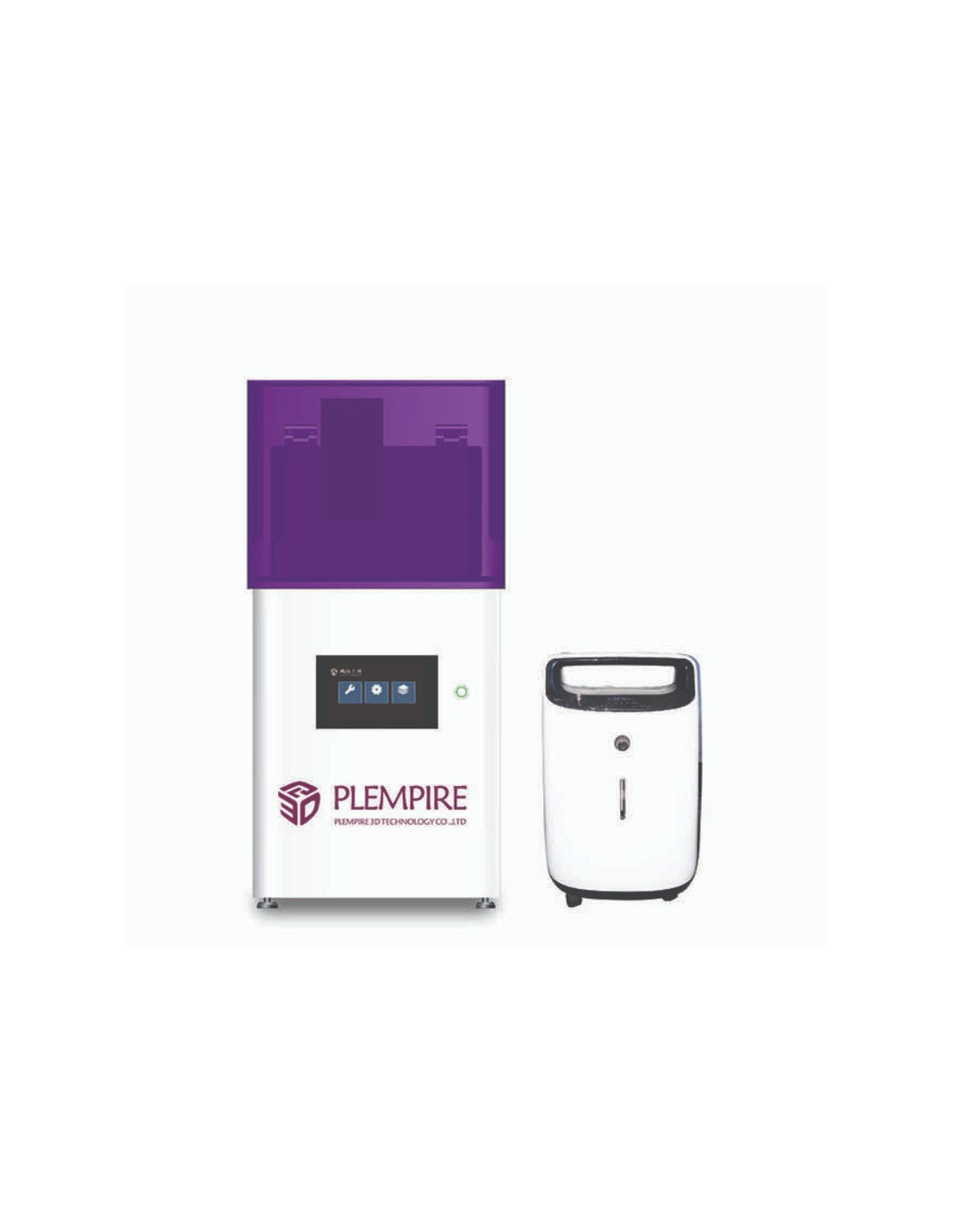

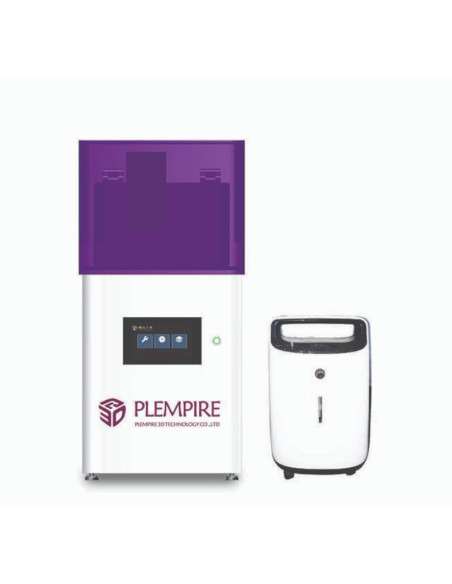

PL100 UDLM Plus 3D Printer

Applications

The PL100 UDLM Plus represents the technological pinnacle of additive manufacturing for the jewelry industry. Utilizing proprietary UDLM (Ultra Digital Light Manufacturing) technology, the system enables continuous Z-axis movement without pausing between layers, dramatically increasing production throughput. It is specifically engineered for high-volume production of intricate investment casting patterns, master models, and prototypes requiring zero rasterization and perfect surface quality for direct casting.

Advantages

The key advantage of the "Plus" version is the enhanced 35μm XY resolution combined with layer thickness capabilities as fine as 10μm. The industrial-grade UV LED light source ensures uniform energy distribution across the entire platform, preventing dimensional distortion. Coupled with EASY CAST resin support, the printer achieves a surface finish that significantly reduces manual polishing time for precious metal castings.

Workshop Suitability

With a robust 35 kg metal chassis, the PL100 is designed for stable, 24/7 industrial operation. The Plus variant offers an expanded build volume of 136 x 76 x 100 mm, allowing for larger batches of jewelry components in a single cycle. Its enclosed design and industrial-grade internal components ensure long-term reliability and high repeatability in demanding service bureau environments.

Technological Recommendation

For optimal results with UDLM continuous printing, we recommend using native EASY CAST materials, which are calibrated for the high-speed motion of this system. The machine accepts standard STL and SLC file formats. Ensure the unit is placed on a level, vibration-free surface to maintain precision during high-speed printing cycles.

Maintenance / Service

Designed for simplified maintenance, the system requires routine inspections of the optical path and FEP/nFEP tank film tension. 3DFantom provides comprehensive authorized technical support, operator training, and supply of genuine spare parts to ensure maximum uptime for both standard and Plus configurations.

PARAMETERS

• Technology: UDLM (Ultra Digital Light Manufacturing)

• Light Source: Industrial grade UV LED

• Build Volume (Standard/Plus): 90 x 50 x 100 mm / 136 x 76 x 100 mm

• XY Resolution (Standard/Plus): 50 μm / 35 μm

• Layer Thickness (Standard/Plus): 25–50 μm / 10–50 μm

• Supported Materials: EASY CAST (and certified resins)

• File Formats: STL, SLC

• Data Transfer: USB

• Power Supply: 220V AC

• Machine Dimensions: 395 x 350 x 787 mm

• Machine Weight: 35 kg
