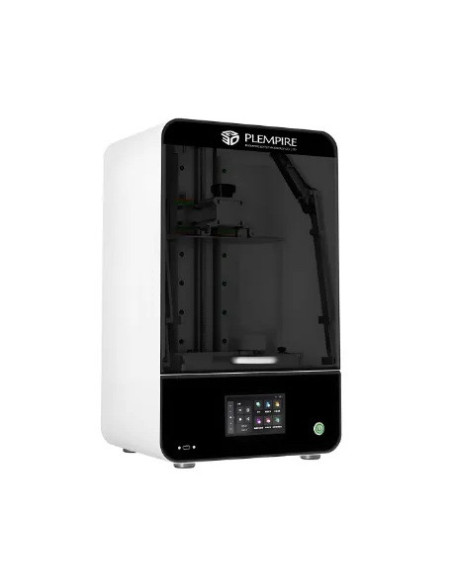

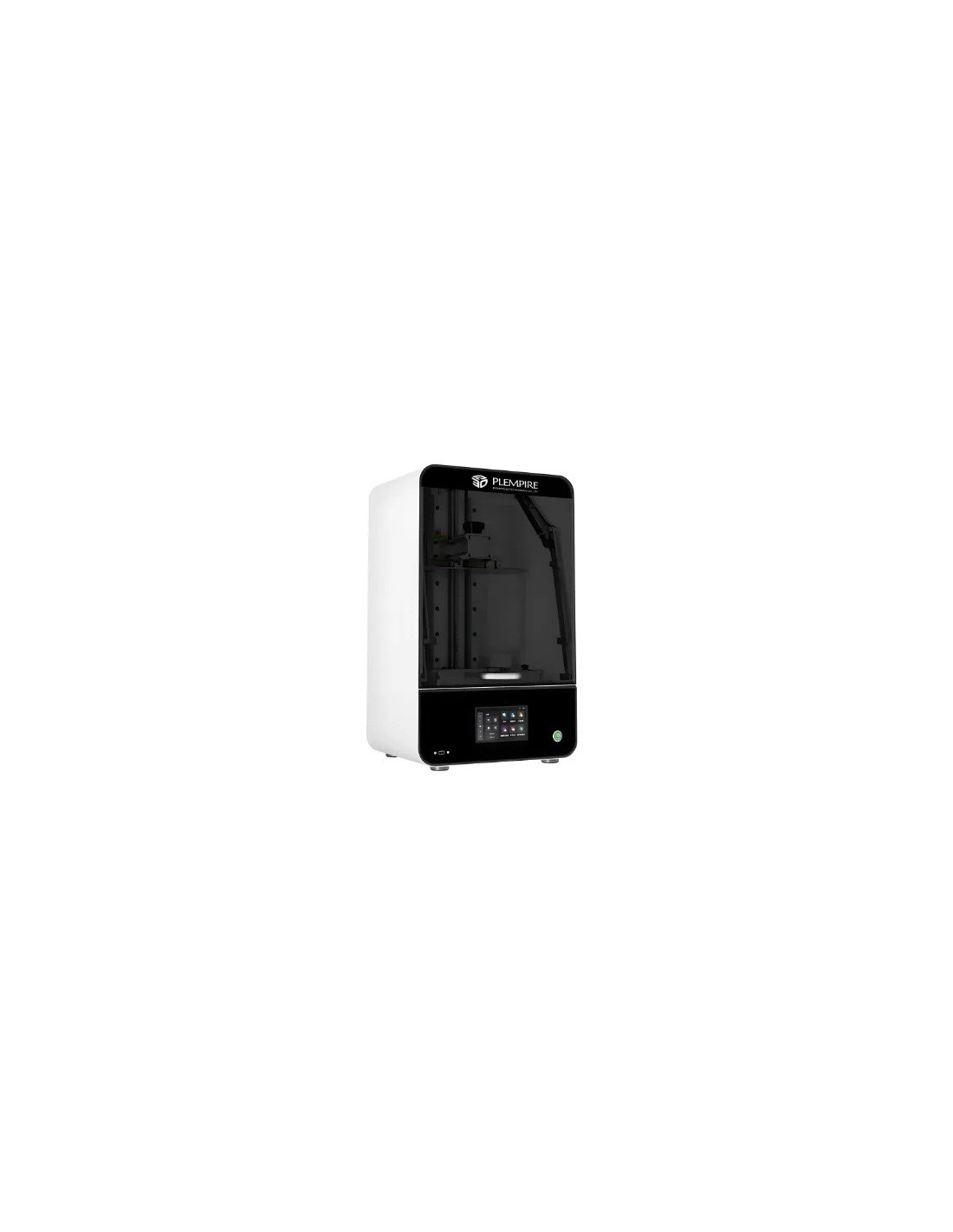

PL200 14K LCD 3D Printer

Applications

The PL200 is a high-performance 3D printing solution engineered for jewelry workshops and laboratories that demand both extreme detail and a large production capacity. Thanks to its 14K LCD panel, it achieves a pixel precision of 16.8 μm in the X-axis, enabling the faithful reproduction of microscopic prongs, delicate engravings, and complex filigree. The system is optimized for manufacturing high-quality investment casting patterns and master models for silicone rubber molds.

Advantages

The standout feature of the PL200 is its powerful 180W LED light source, which ensures rapid and uniform resin curing throughout the entire 223 x 126 x 350 mm build envelope. This combination of power and space allows for the production of large batches of rings or oversized jewelry pieces (such as bracelets or tiaras) without sacrificing dimensional accuracy. Full compatibility with STL, OBJ, and SLC file formats ensures a seamless workflow from professional CAD software (Rhino, Matrix) directly to the machine.

Workshop Suitability

With a body weight of 24 kg and a robust industrial chassis, the PL200 provides a stable platform that eliminates micro-vibrations that can degrade surface quality. Comprehensive connectivity options—including USB, Wi-Fi, and Ethernet—allow for flexible job management within a studio network. The system is powered by a standard AC supply, with a 500W power draw reflecting the industrial-grade light source required for professional castable resins.

Technological Recommendation

Given the ultra-high pixel density, we recommend using premium LCD-optimized resins with low viscosity to maintain optimal flow within the resin tank. Regular calibration of the build platform is essential to maintain tolerances for functional assemblies and multi-part designs. For high-volume production, Ethernet data transfer is recommended when handling large SLC files to ensure maximum stability.

Maintenance / Service

Routine maintenance involves keeping the LCD panel clean and monitoring the tension and clarity of the nFEP/FEP film in the tank. 3DFantom provides authorized technical support, operator training, and a full inventory of spare parts to ensure continuous production uptime for your workshop.

PARAMETERS

• Model: PL200

• Technology: 14K LCD (MSLA)

• Build Volume: 223.78 x 126.98 x 350 mm

• Pixel Precision (X/Y): 16.8 μm * 24.8 μm

• LED Power: 180 W

• File Formats: STL, OBJ, SLC

• Data Transfer: USB, Wi-Fi, Ethernet

• Device Dimensions: 39 x 31 x 65 cm

• Device Weight: 24 kg

• Power Supply: AC 100-240V / 500W
