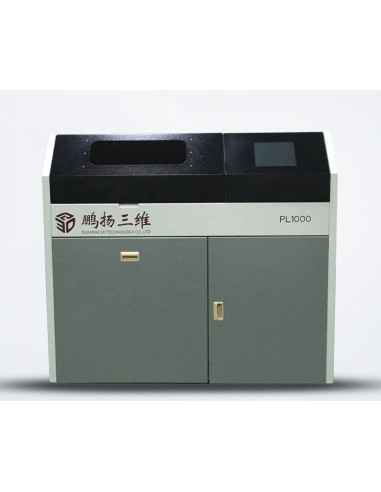

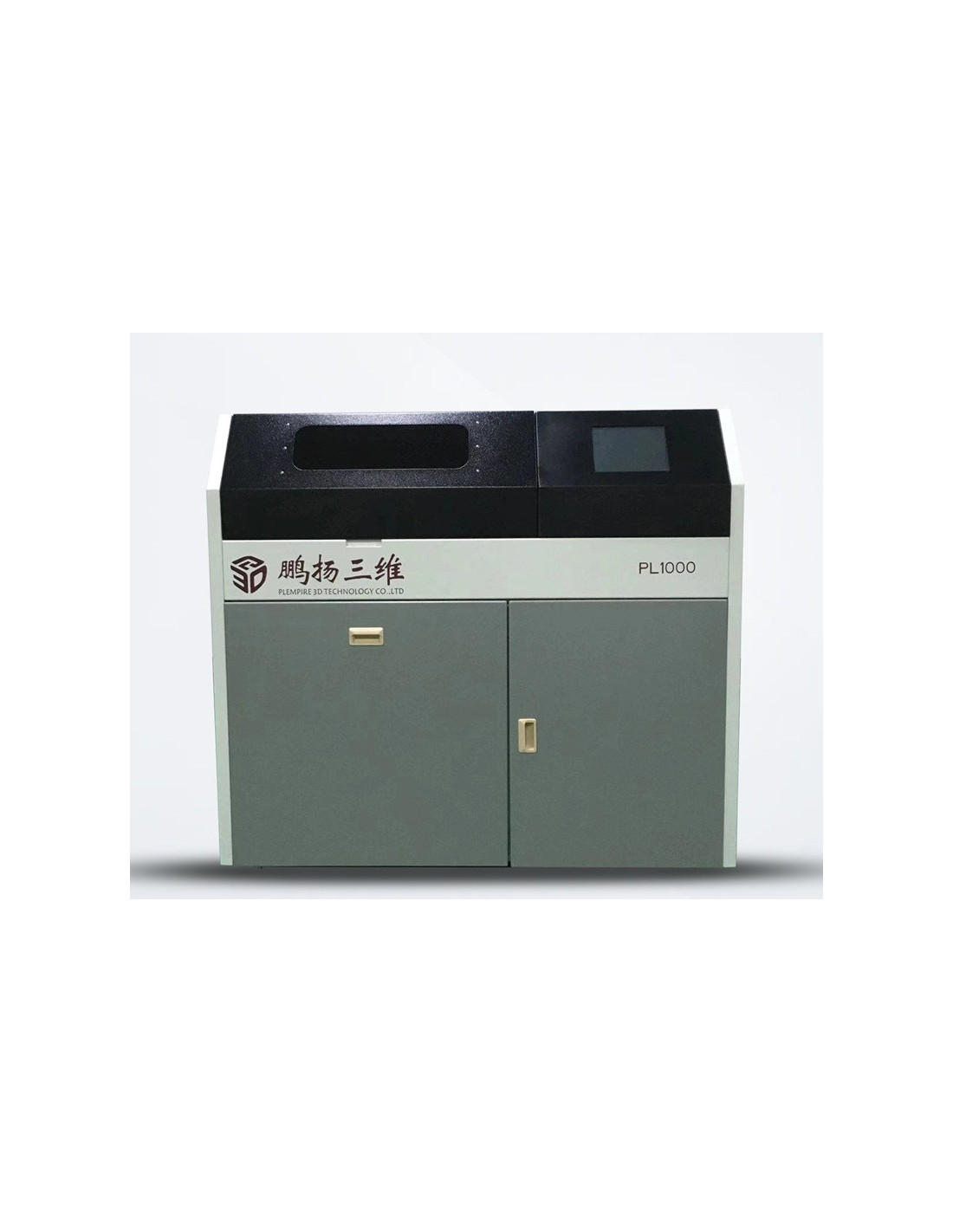

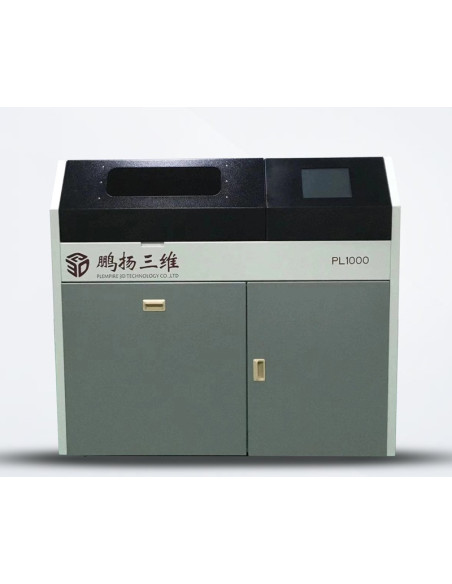

Plempire PL1000 3D Printer

Applications

The Plempire PL1000 is a high-performance industrial 3D printer utilizing MultiJet Printing (MJP) technology. It is specifically engineered for the mass production of precision wax patterns used in direct investment casting (lost-wax process). With a generous build volume of 294 x 212 x 150 mm, it serves as an ideal solution for large-scale jewelry manufacturers and service bureaus that require hundreds of flawless wax models daily.

Advantages

The machine operates at an extreme resolution of 1200 x 1200 x 1600 DPI with a layer thickness of just 16 microns. This technology, combined with the dedicated purple casting wax (YHK-601) and white support wax (YHK-102), produces models with surface smoothness that virtually eliminates the need for manual sanding or finishing. The system supports multi-channel printing, allowing operators to optimize speed and quality based on the complexity of the jewelry geometry.

Workshop Suitability

With a net weight of 350 kg and a robust industrial chassis, the PL1000 is a stationary powerhouse designed for stable, heavy-duty production environments. It is built for 24/7 operation with high repeatability. Full support for professional formats including STL, SLC, and OBJ ensures seamless integration with all leading jewelry CAD software.

Technological Recommendation

To achieve the maximum accuracy of +/- 0.1016 mm, we recommend maintaining a climate-controlled environment with stable room temperatures. The dual-wax system (build and support) enables the printing of the most complex hollow and interlaced designs that are physically impossible to realize with other technologies. The support wax melts away cleanly, preserving even the most delicate filigree details.

Maintenance / Service

The device requires a dedicated 220-240 VAC / 15 A power supply. Given the complexity of MJP technology and the machine's weight, 3DFantom provides professional installation, calibration, and regular service intervals. The longevity of the print heads is guaranteed by using original waxes and following the prescribed maintenance schedule.

PARAMETERS

• Technology: MultiJet Printing (MJP)

• Resolution: 1200 x 1200 x 1600 DPI

• Layer Thickness: 16 microns

• Build Volume: 294 x 212 x 150 mm (11.6 x 8.3 x 5.9 in)

• Accuracy: +/- 0.1016 mm per 25.4 mm (of part dimension)

• Compatible Materials: Purple casting wax (YHK-601), White support wax (YHK-102)

• Printing Speed: 5.08 mm/h (Single), 2.54 mm/h (Double), 1.78 mm/h (Triple channel)

• File Formats: STL, SLC, OBJ, AMF, MJPDDD

• Machine Dimensions: 1800 x 960 x 1269 mm

• Machine Weight: 350 kg (Uncrated) / 450 kg (Crated)

• Power Supply: 220-240 VAC, 50/60 Hz, 15 A
