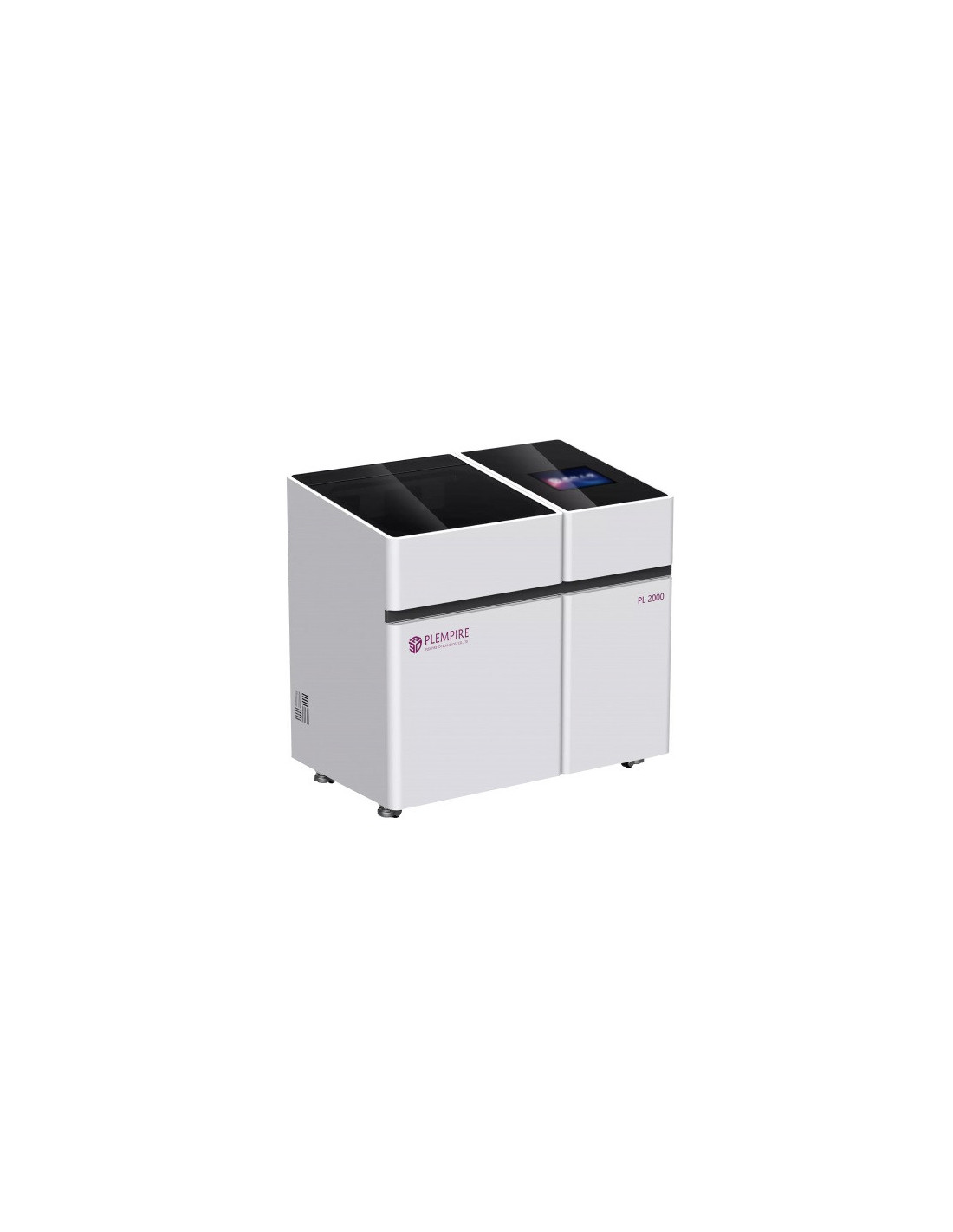

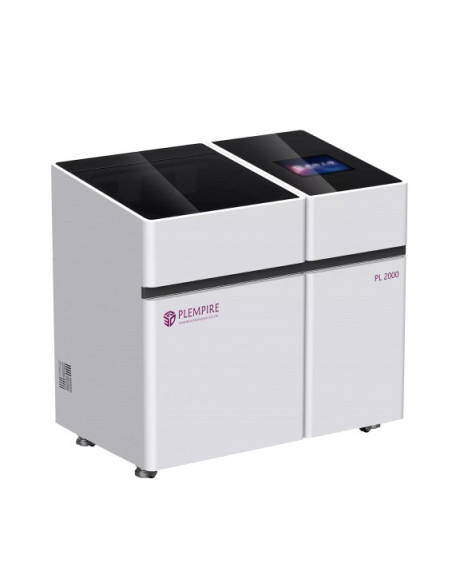

Plempire PL2000wax MJP 3D Printer

Applications

The Plempire PL2000wax is an intelligent, high-efficiency industrial 3D printer utilizing MultiJet Printing (MJP) technology. Specifically engineered for the jewelry field, it focuses on high-volume production and mass customization. It allows jewelry manufacturers to convert complex 3D designs directly into ultra-fine wax workpieces with extreme dimensional fidelity, significantly accelerating the workflow from concept to final casting.

Advantages

This system is defined by three core pillars: High Precision, High Efficiency, and High Cost Performance. With an impressive resolution of 1200 x 1200 x 1600 DPI and a layer thickness of only 16 µm (0.016 mm), it delivers superior surface quality and microscopic detail. The direct wax melting process improves casting production efficiency and ensures the highest yield of precious metals by providing a clean, ash-free burnout.

Workshop Suitability

With a net weight of 350 kg, the PL2000wax provides a rock-solid industrial platform that eliminates vibrations during high-speed cycles. It is designed for professional environments, featuring a standard 220-240V AC power input with a Single C14 socket. Full support for STL, SLC, OBJ, AMF, and MJPDDD formats ensures seamless integration into existing professional CAD/CAM ecosystems.

Technological Recommendation

To optimize productivity, the printer offers adjustable build speeds based on the number of lanes (1, 2, or 3), allowing users to balance throughput and surface finish requirements. Using the original Purple casting wax and White meltable support wax is essential for achieving the intended "High Precision" results and ensuring that even the most complex interlocking geometries remain intact during post-processing.

Maintenance / Service

The PL2000wax is built for industrial durability but requires a stable environment and routine calibration of the jetting heads. 3DFantom provides professional installation, operator training, and a consistent supply of original material packages to maintain peak production performance and high cost-efficiency.

PARAMETERS

• Technology: MultiJet Printing (MJP)

• Build Volume (xyz): 294 x 212 x 150 mm

• Resolution (xyz): 1200 x 1200 x 1600 DPI

• Layer Thickness: 16 μm (0.016 mm)

• Accuracy: ± 0.1016 mm per 25.4 mm of part dimension

• Build Speed (Z): 1.78 to 5.08 mm/hr (based on lane configuration)

• Material Package: Purple wax (1.2kg), White support wax (1.35kg)

• File Formats: STL, SLC, OBJ, AMF, MJPDDD

• Machine Dimensions: 1200 x 790 x 1165 mm

• Weight: 350 kg (Net) / 510 kg (Gross)

• Electrical: 220-240V AC, 50/60Hz, 15A (C14 Socket)
