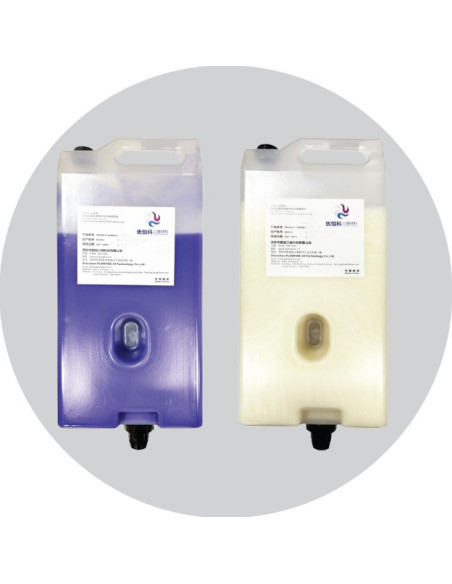

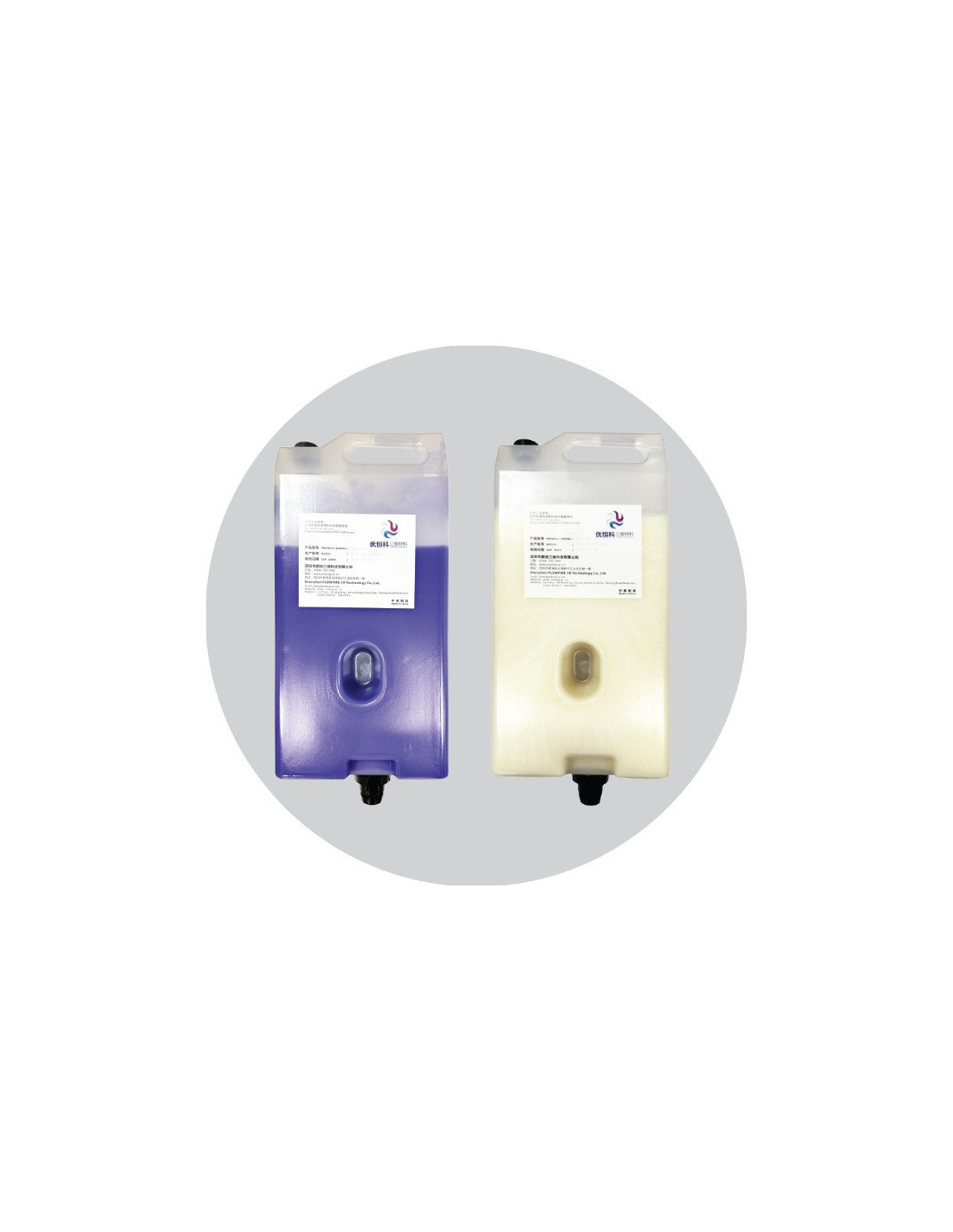

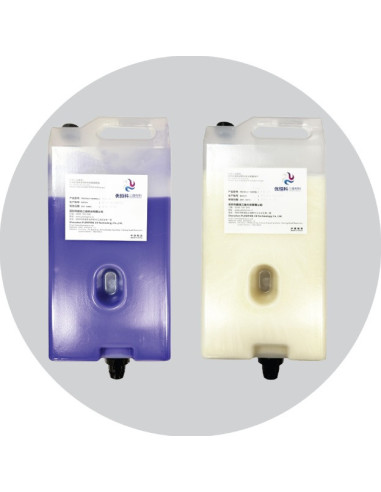

Plempire YHK-603/103 Wax Set for PL6000

Applications

The Plempire YHK-603 (Build) and YHK-103 (Support) material system is specifically engineered for high-volume industrial 3D wax printers, primarily the PL3000 model. This system is designed for the continuous production of high-precision jewelry patterns. The Purple build wax provides the necessary durability and resolution for intricate models, while the White support wax enables the fabrication of complex, interlocking geometries without affecting the surface quality of the final part.

Advantages

This set is defined by its industrial-grade performance. The YHK-603 build material features a needle hardness of 7.2, ensuring that delicate prongs and fine filigree remain stable during handling. With a low linear contraction of only 0.52% and a minimal ash content of 0.019%, it guarantees dimensionally accurate castings free from surface inclusions. The YHK-103 support material is contact-free and fully soluble, preserving the integrity of even the most microscopic jewelry details.

Workshop Suitability

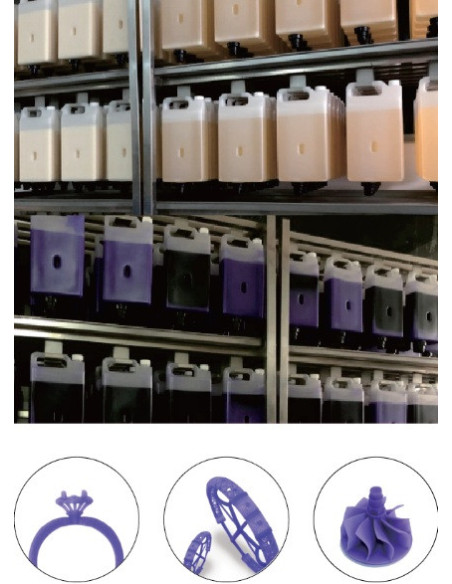

These large-volume containers (3.0 kg and 3.6 kg) are ideal for production facilities with high daily throughput. The 100% wax composition ensures a clean, residue-free burnout, making it compatible with all precious metal casting cycles. The high-contrast Purple pigment of the build material allows for easy quality control, while the lower melting point of the support wax simplifies the post-processing phase.

Technological Recommendation

The support wax melting point (55°C) is 13 degrees lower than the build material (68°C), allowing for selective melting in a thermostatic bath. To ensure consistent performance in a high-speed production environment like the PL3000, we recommend maintaining a stable liquid phase temperature of approximately 95°C within the printer's delivery system.

Maintenance / Service

Store these high-capacity containers in their original sealed packaging at temperatures between 15–25°C. 3DFantom ensures the highest purity and stable viscosity of these materials to protect your printheads from clogging and to extend the service life of your PL3000 equipment.

PARAMETERS

YHK-603 (Build Material)

• Type: High-resolution durable casting wax

• Component: 100% Wax

• Color: Purple

• Weight: 3.0 kg

• Density @ 95°C (Liq.): 0.811 g/ml

• Melting Point: 68°C

• Softening Point: 63°C

• Linear Contraction: 0.52%

• Ash Content: 0.019%

• Hardness (Needle): 7.2

• Compatibility: Plempire PL3000

YHK-103 (Support Material)

• Type: Contact-free soluble support wax

• Component: 100% Wax

• Color: White

• Weight: 3.6 kg

• Density @ 95°C (Liq.): 0.85 g/ml

• Melting Point: 55°C

• Compatibility: Plempire PL3000
