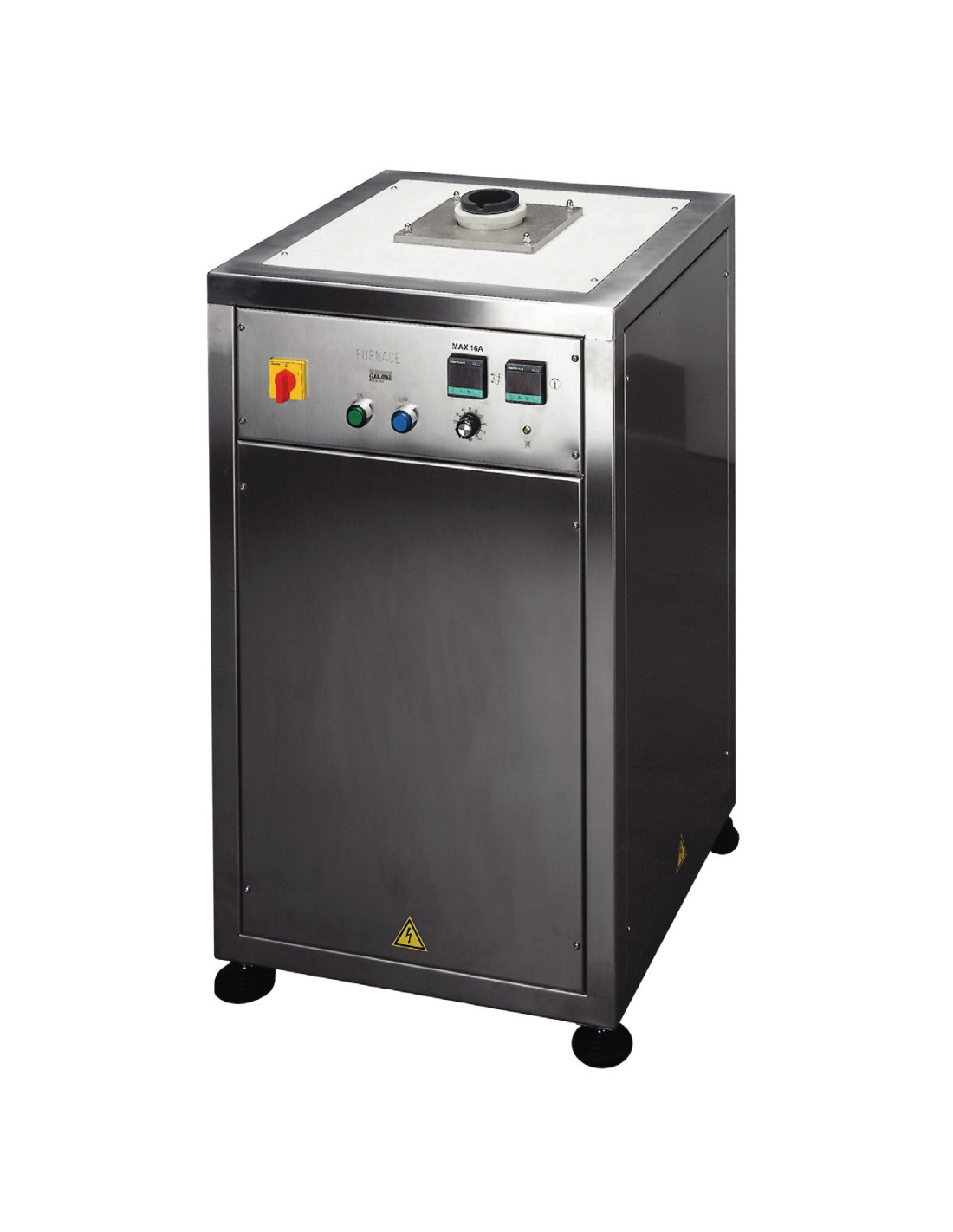

Galloni Induction Melting Furnace 7kW/10kW

Application

The Galloni electronic medium frequency induction furnace is an industrial-grade solution designed for rapid precious metal melting, recycling, and hand-pouring. With its high melting speed, it is ideal for refining laboratories, medium-to-large jewelry production facilities, and workshops processing precious metals in the form of grain, scrap, or industrial waste. The system is optimized for use with graphite crucibles, ensuring high melt purity and excellent thermal conductivity.

Advantages

The core advantage of this furnace is its extreme efficiency – it can melt 3 to 5 kg of gold within minutes. Induction technology provides not only raw power but also ensures a perfectly homogenous alloy through electromagnetic stirring. An optional optical infrared temperature controller is available for automatic regulation and stabilization, eliminating the risk of overheating and minimizing the loss of alloy additives.

Workshop Suitability

With a robust 150 kg chassis and a compact 550 x 550 mm footprint, the Galloni furnace is built for stability and space efficiency in the casting room. It requires a water-cooling connection (3 l/min at 4 bar), ensuring long-term reliability and consistent performance even during continuous heavy-duty operation.

Technological Recommendation

For processing high-temperature materials like platinum or steel, the 10 kW version is highly recommended to maintain rapid cycle times. When recycling scrap gold, utilizing the optional optical sensor is crucial; it guarantees the exact casting temperature, significantly reducing oxidation and porosity in the final ingots or castings.

Maintenance / Service

The furnace requires a clean cooling water supply (ideally a closed-circuit chiller system) at a constant 4 bar pressure. Regular inspection of the graphite crucible and induction coil cleanliness is essential for maintaining peak electrical efficiency. 3DFantom provides comprehensive technical support, replacement crucibles, and induction module servicing.

PARAMETERS

• Power Supply: 230/400/415 V – 50/60 Hz

• Power Output Options: 7 kW or 10 kW

• Cooling: Water (3 l/minute at 4 bar)

• Casting Capacity (7 kW): 5 kg Au / 3 kg Ag / 0.5 kg Pt

• Casting Capacity (10 kW): 7 kg Au / 5 kg Ag / 1 kg Pt

• Dimensions: 550 x 550 x 980 mm

• Weight: 150 kg

• Temperature Control: Optional Optical IR Controller
