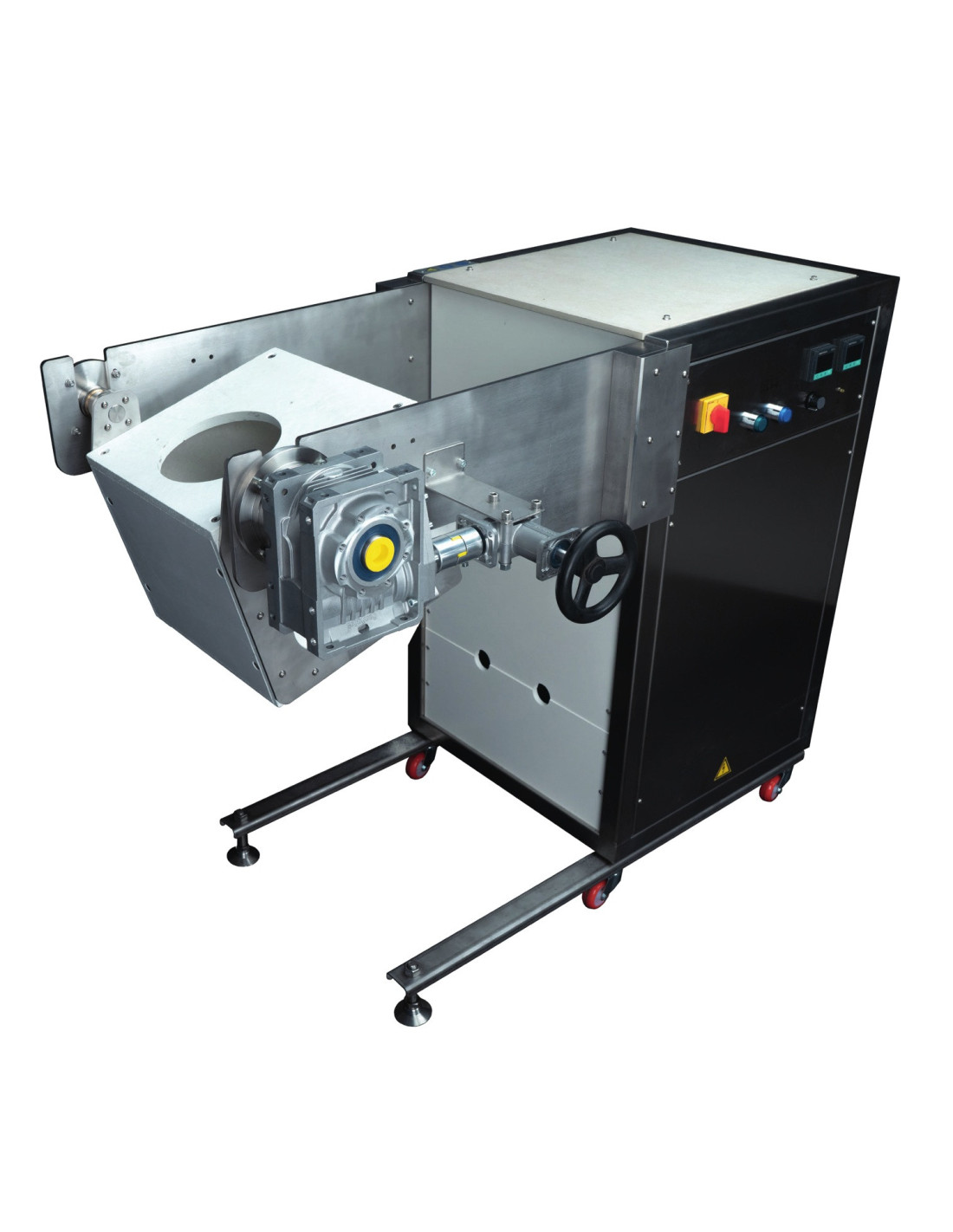

Galloni K10 Induction Tilting Furnace 10kW

Application

The Galloni K10 is a professional electronic medium frequency induction furnace designed for melting a wide range of alloys while strictly preserving their physical and metallurgical properties. This tilting model is engineered for industrial jewelry production, refineries, and large-scale workshops that require efficient, safe, and high-capacity pouring into molds or ingots.

Advantages

Equipped with the latest generation of generators, the K10 ensures a rapid melting process with high yielding capacity. The system features a tilting head connected to the induction unit via specialized water-cooled copper pipes, all integrated into a sturdy stainless steel bar frame. The quality of the generated magnetic field guarantees the best possible homogeneity of the alloy, which is crucial for high-quality casting results. Digital controls allow for precise optimization of the entire melting cycle.

Workshop Suitability

Safety and ergonomics are paramount; the furnace is operated via a dedicated push-button panel for tilting and includes an integrated emergency stop. The stable base and robust construction make it a reliable centerpiece for any casting room handling up to 7 kg of gold. Its design minimizes metal loss and maximizes thermal efficiency.

Technological Recommendation

For high-melting-point metals such as platinum or steel, the 10kW power output provides the necessary thermal energy to reach liquidus quickly, preventing crucible degradation. When casting complex alloys, the induction-driven electromagnetic stirring ensures that all alloying elements are perfectly distributed throughout the melt before tilting.

Maintenance / Service

The furnace requires a constant cooling water supply (3 l/min at 4 bar) to protect the induction system and copper pipes. Regular maintenance of the tilting mechanism and inspection of the cooling lines is recommended. 3DFantom provides full technical support, spare parts, and expert servicing for Galloni induction systems.

PARAMETERS

• Power Supply: 230/400/415 V – 50/60 Hz

• Power Output: 10 kW

• Cooling: Water (3 l/minute at 4 bar)

• Casting Capacity: 7 kg Au / 5 kg Ag / 5 kg Bronze / 1 kg Pt / 1 kg Steel

• Control System: Digital control with push-button tilting panel

• Construction: Stainless steel frame with water-cooled tilting head

• Overall Dimensions: 1200 x 900 x 1100 mm

• Weight: 150 kg
