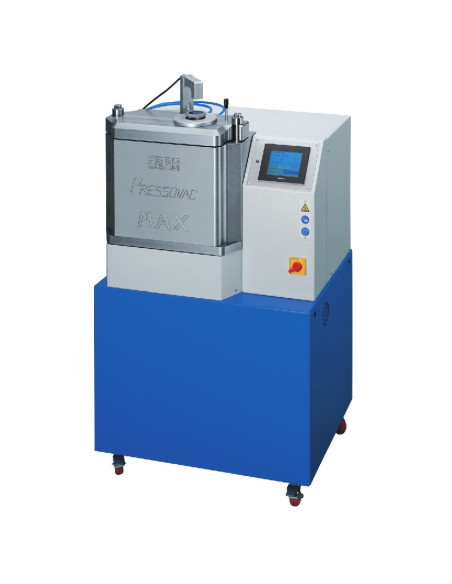

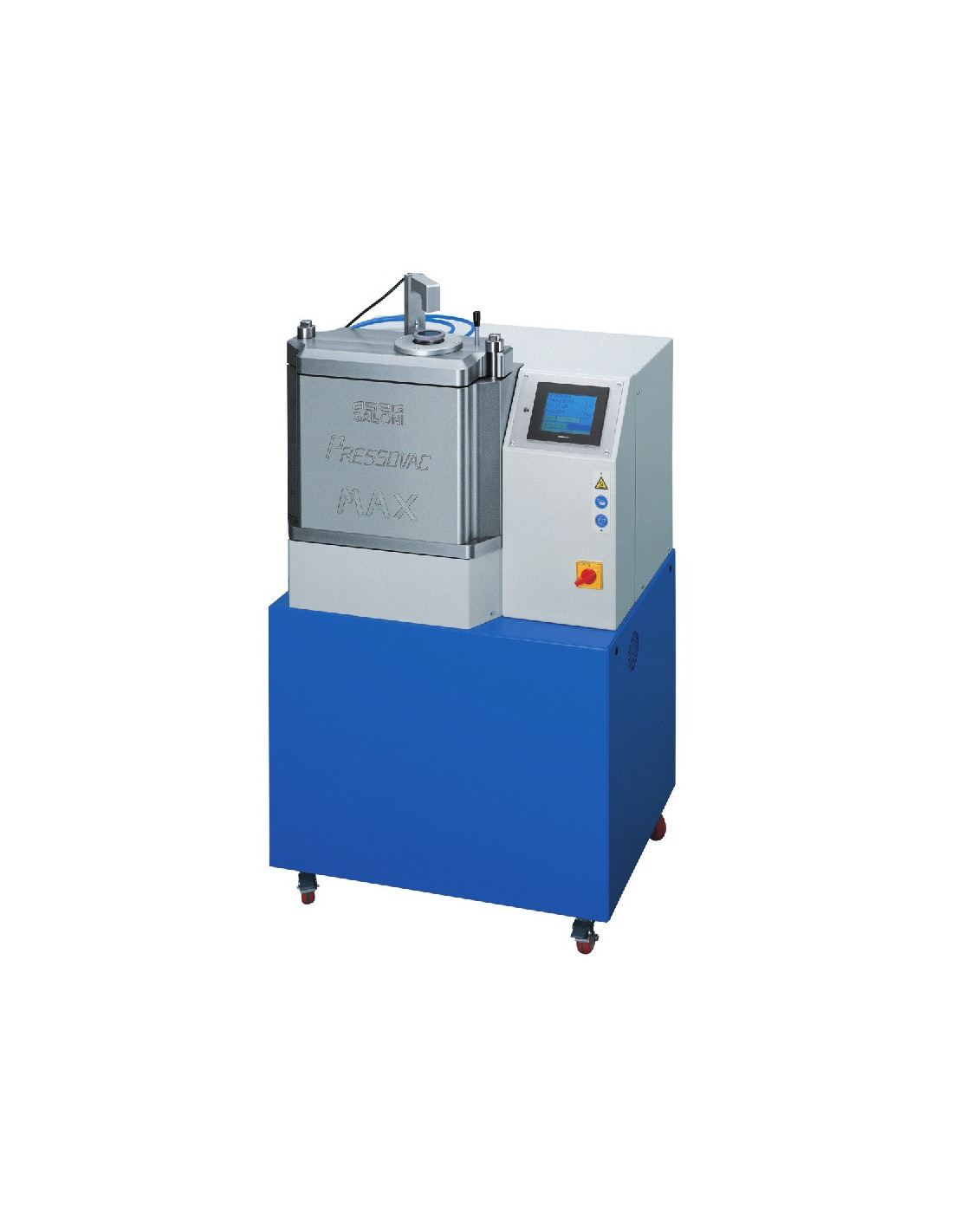

Galloni Pressovac Max Casting Machine

Application

The Galloni Pressovac Max is a heavy-duty, free-standing induction vacuum casting machine designed for professional jewelry manufacturers and industrial laboratories requiring higher output. As the enhanced version of the standard Pressovac, the "MAX" offers a significantly larger casting capacity, accommodating flasks up to ø 100 mm x 150 mm. It is engineered to process a wide range of metals, including precious alloys, silver, brass, and high-melting-point materials like platinum and steel.

Advantages

The machine's precision is driven by an advanced triple-sensor temperature monitoring system:

• Optical Infrared Pyrometer: For temperatures up to 2100°C, ideal for platinum and steel.

• Immersion "K" Thermocouple: For precious metals up to 1150°C.

• Optional "S" Thermocouple: Specialized for gold-palladium alloys up to 1450°C. The integrated touch-screen interface allows for granular control over the entire cycle, ensuring that the transition from vacuum to 7-bar over-pressure is perfectly timed for maximum casting density.

Workshop Suitability

Unlike bench-top models, the Pressovac Max is a robust, free-standing unit weighing 160 kg, providing the stability needed for continuous industrial use. With a powerful 7kW three-phase generator, it delivers rapid melting cycles, making it highly productive for casting large trees or complex 3D-printed resin components. It is fully compatible with standard flask sizes from 70 mm to 100 mm.

Technological Recommendation

To ensure the absolute integrity of intricate resin patterns or high-detail jewelry, we recommend utilizing the 7-bar over-pressure feature with inert gases like Argon or Nitrogen. This high-pressure "push" immediately following the pour forces the molten metal into the finest mold cavities, eliminating common issues like incomplete fills or surface porosity often found in gravity-based systems.

Maintenance / Service

The Pressovac Max requires an external vacuum pump (8 m³/h) and a closed-circuit water cooling system (3 l/min). For long-term reliability and to maintain the 12-month warranty, only original Galloni consumables (crucibles and stoppers) should be used. 3DFantom provides professional installation, sensor calibration, and comprehensive technical support for industrial operators.

PARAMETERS

• Power Supply: Three-phase 230/400/415 V – 50/60 Hz

• Induction Power: 7 kW

• Flask Capacity: ø 70 mm to 100 mm, Height up to 150 mm

• Temp. Sensors: Optical (2100°C), K-Type (1150°C), S-Type Opt. (1450°C)

• Pressure System: Vacuum + 7-bar Over-pressure

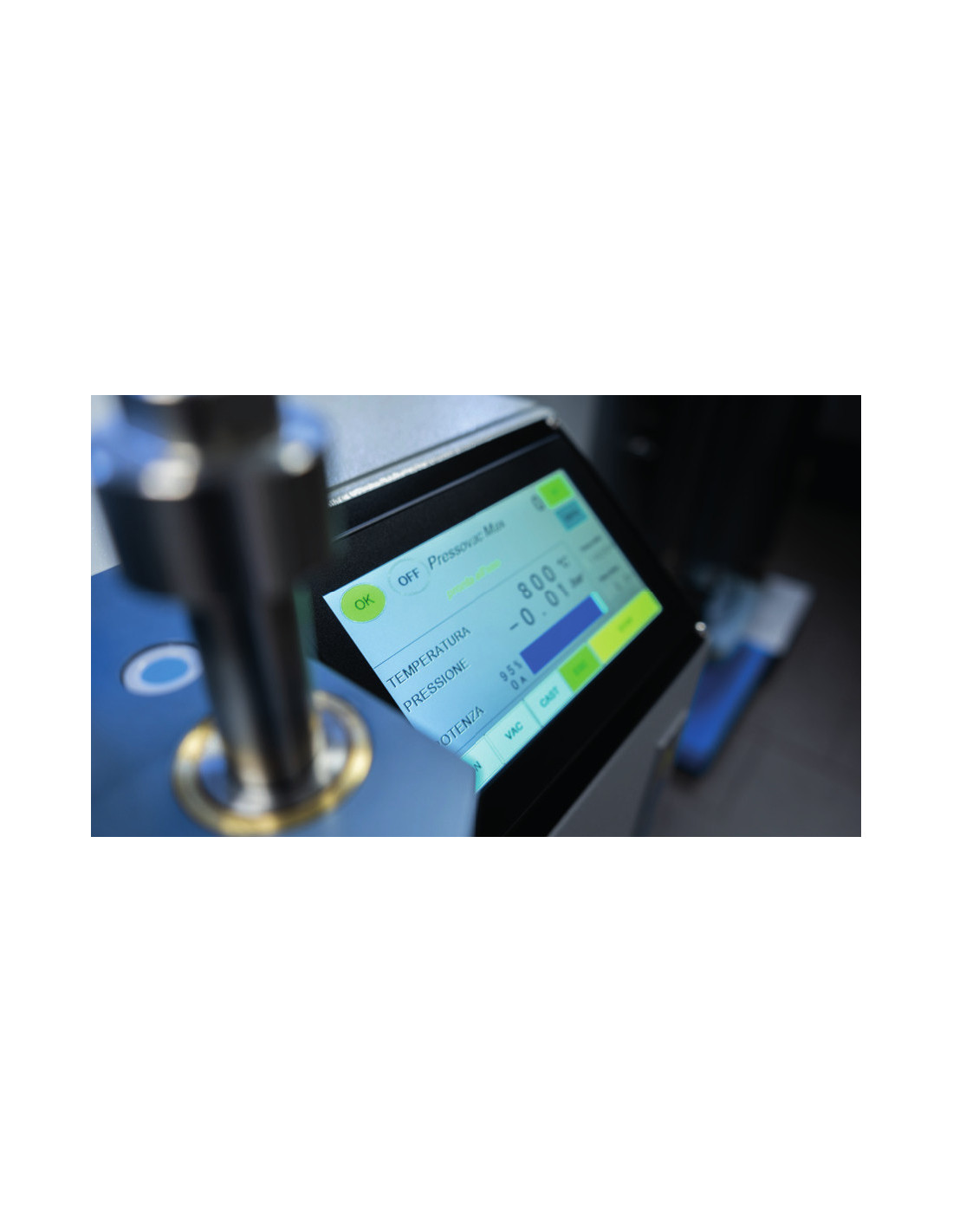

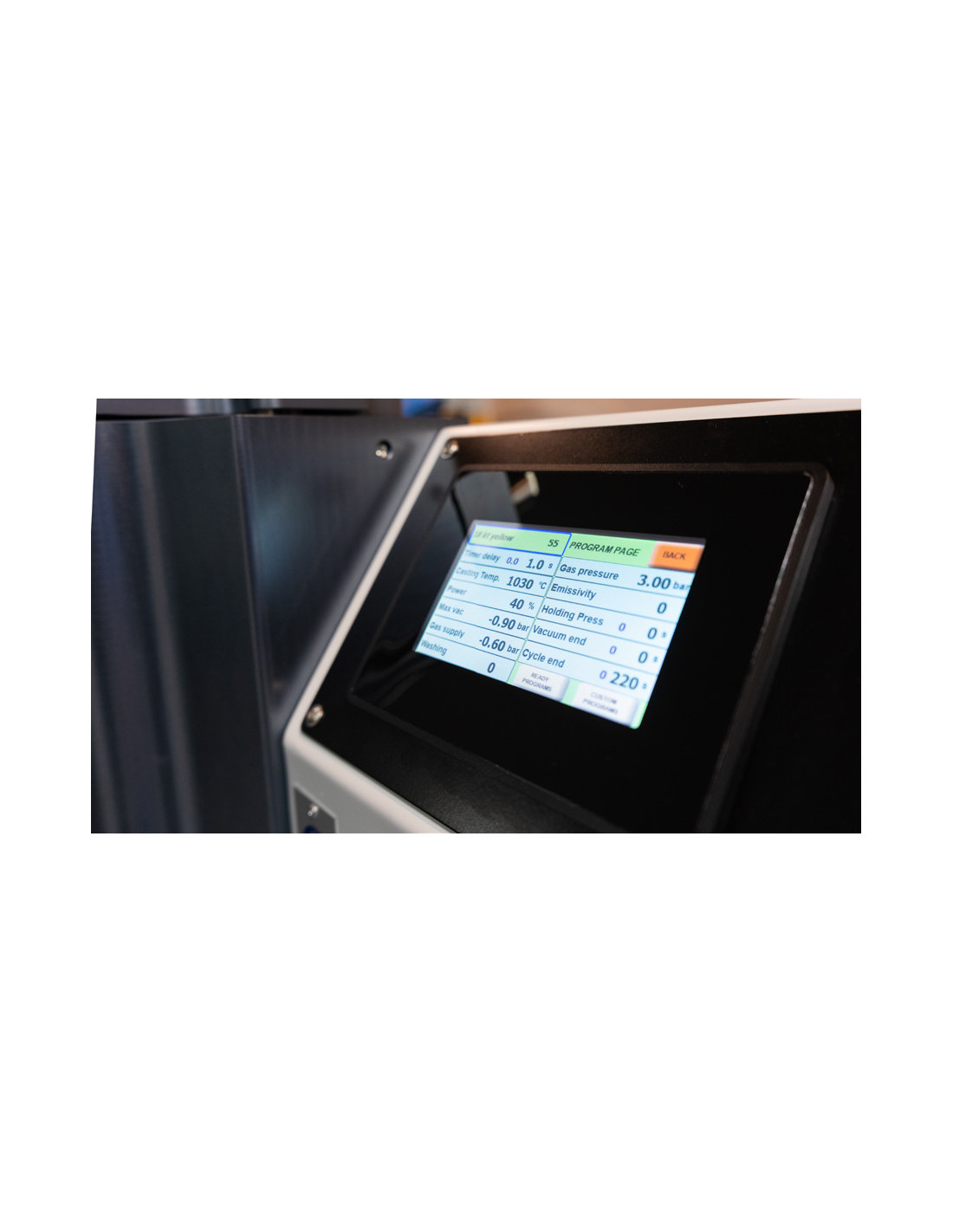

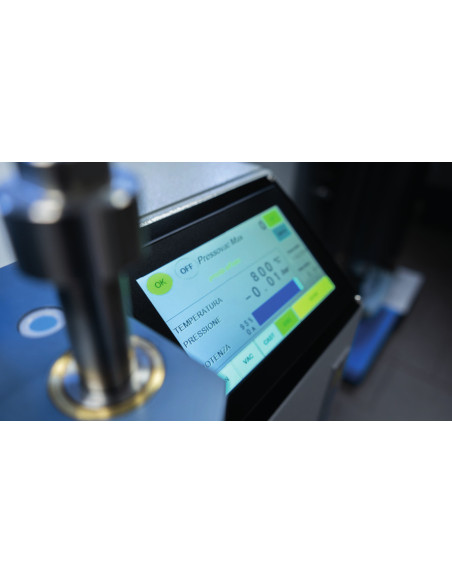

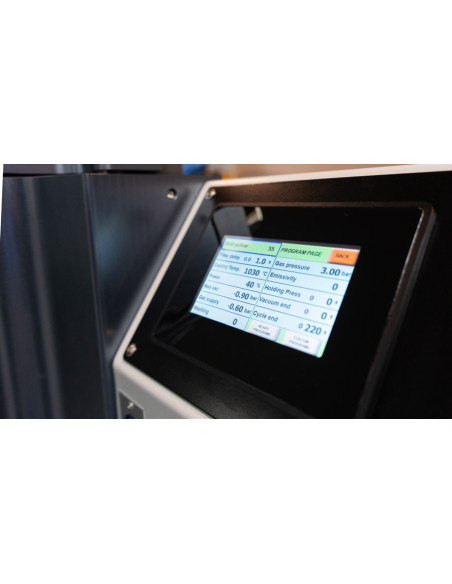

• Control: Digital Touch-screen

• Vacuum Requirement: External pump 8 m³/h – 0.5 mbar

• Cooling: Water 3 l/min at 4 bar

• Dimensions & Weight: 680 x 490 x 1200 mm / 160 kg
